(35.738.AH[03]) - VAR - 423080 - VALVE, OBJECT HANDLING, MOUNTING

Запчасти Case 580SN (35.738.AH[03]) - VAR - 423080 - VALVE, OBJECT HANDLING, MOUNTING (35) - HYDRAULIC SYSTEMS

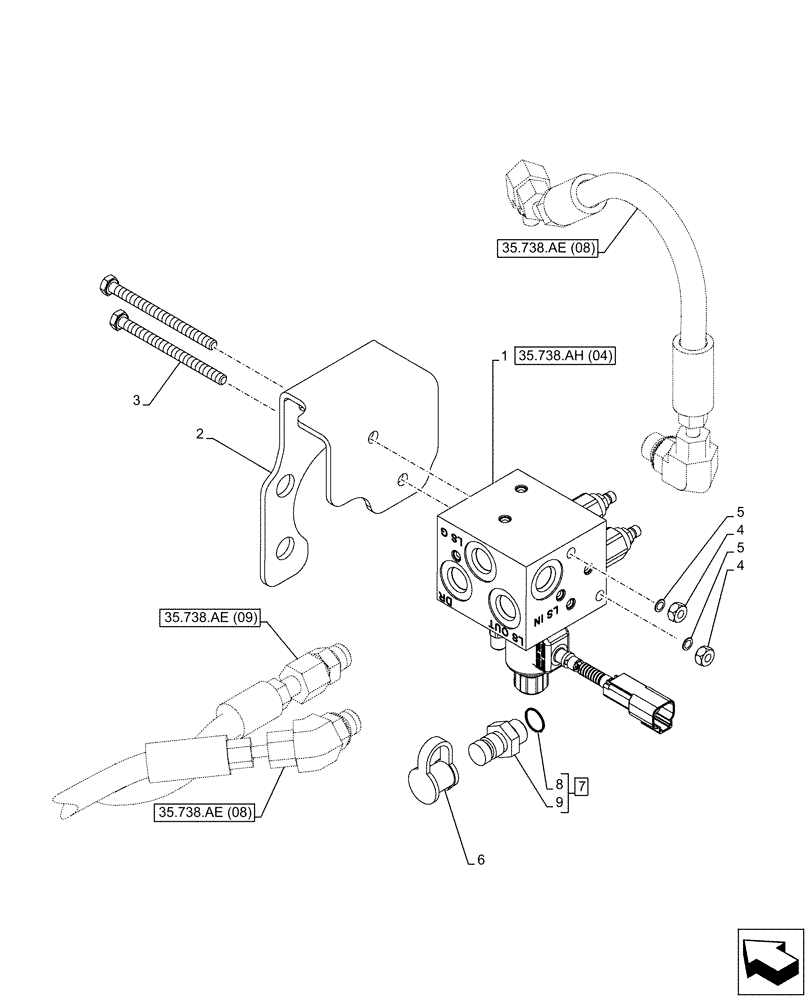

Схема запчастей Case 580SN - (35.738.AH[03]) - VAR - 423080 - VALVE, OBJECT HANDLING, MOUNTING (35) - HYDRAULIC SYSTEMS
35.738.ah (04)
5
8
4
3
1
4
9
7
5
6
2
35.738.ae (09)
35.738.ae (08)
35.738.ae (08)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84527714

CONTROL VALVE

ASSY, Power Lift

1шт.

2

84333112

BRACKET

1шт.

3

814-6080

BOLT,Hex, M6 x 1 x 80mm, Cl 8.8

2шт.

4

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

5

892-11006

LOCK WASHER,M6

2шт.

6

H434163

DUST CAP

1шт.

7

86596853

QUICK MALE COUPLING,9/16"-18

ASSY, Incl 8, 9

1шт.

8

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

NSS

NOT SOLD SEPARAT

Quick Coupler, Incl in 7

1шт.
