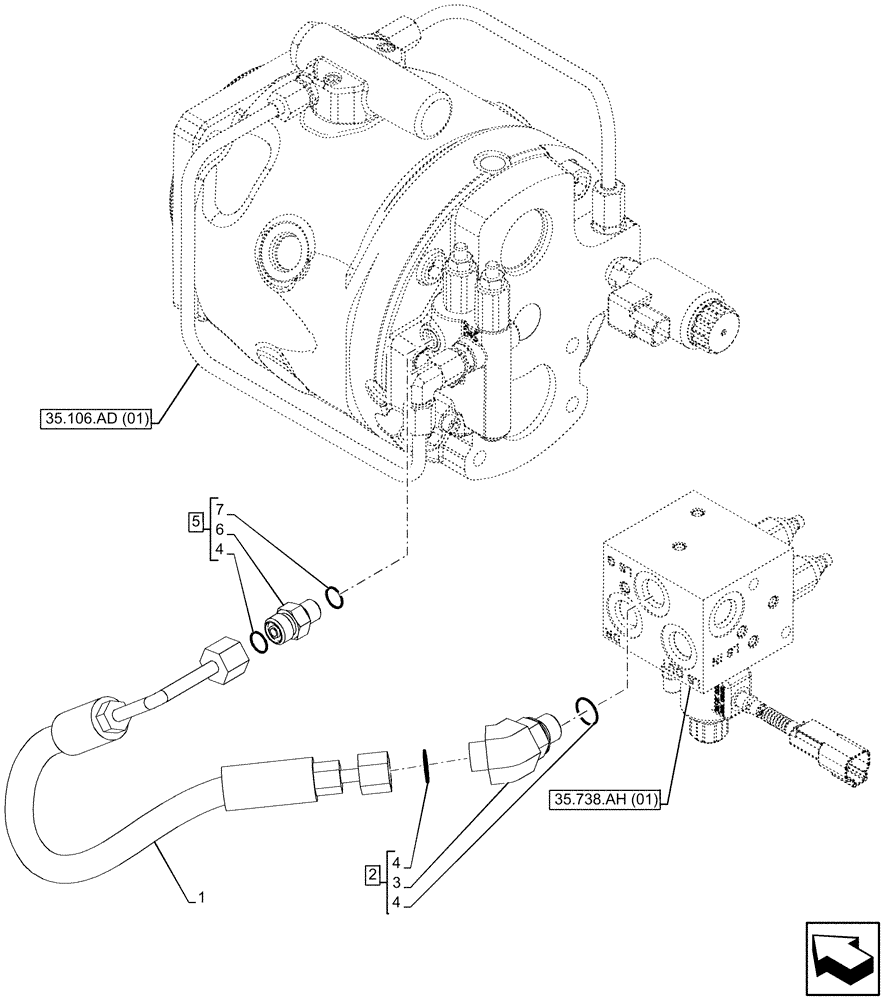

Запчасти Case 580SN (35.738.AE[05]) - OBJECT HANDLING, LINES, PUMP (35) - HYDRAULIC SYSTEMS

1

84332166

HOSE ASSY.,6.3mm ID x 372mm L

372mm, from Heavy Lift Valve Port LS G to Variable Pump Port X

1шт.

2

201-328

ELBOW,45 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

ASSY, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Elbow 45°, Incl in 2

1шт.

4

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

5

87681202

HYD CONNECTOR,9/16" - 18 ORFS x 7/16" - 20 ORB

ASSY, Incl 4, 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

Connector, Incl in 5

1шт.

7

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.
