Запчасти Case 580SN (35.734.AD[09]) - QUICK COUPLER, VALVE, HYDRAULIC LINE (35) - HYDRAULIC SYSTEMS

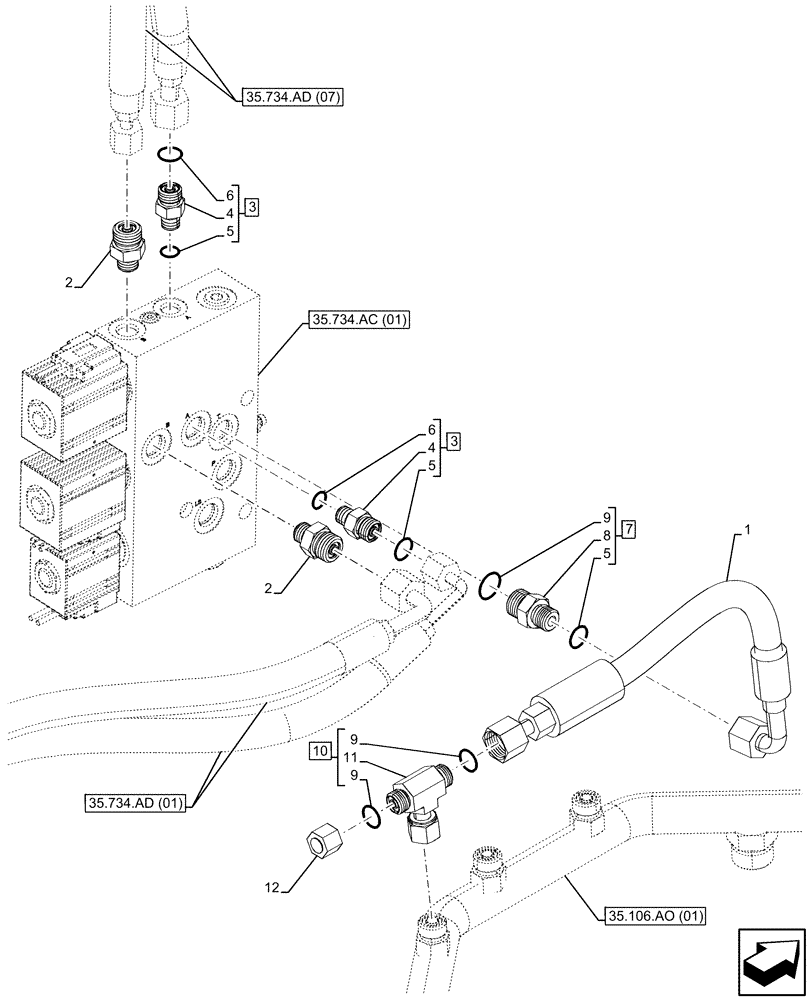

Схема запчастей Case 580SN - (35.734.AD[09]) - QUICK COUPLER, VALVE, HYDRAULIC LINE (35) - HYDRAULIC SYSTEMS
35.734.ad (01)
12
9
10
9
4
6
11
5
4
1
2
6
7
5
3
8
2
5
9
3
35.106.ao (01)
35.734.ac (01)
35.734.ad (07)

Артикул

Название

Примечание

Количество

1

84514721

HOSE ASSY.,10mm ID x 360mm L

Coupler, Return

1шт.

2

84261550

FITTING,11/16"-6 ORFS x 1/2"-5 ORB

2шт.

3

87681202

HYD CONNECTOR,9/16" - 18 ORFS x 7/16" - 20 ORB

ASSY, 9/16"-18 x 7/16"-20 ORFS, Incl 4, 5 (Qty 1), 6 (Qty 1)

2шт.

4

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

2шт.

5

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

6

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

7

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

ASSY, Incl 5 (Qty 1), 8, 9 (Qty 1)

1шт.

8

NSS

NOT SOLD SEPARAT

Connector, Incl in 7

1шт.

9

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

10

86591334

TEE,11/16"-16 ORFS x 11/16"-16 Fem

ASSY, Incl 9 (Qty 2), 11

1шт.

11

NSS

NOT SOLD SEPARAT

Tee, Incl in 10

1шт.

12

87331950

CAP ASSY.,Hex, 11/16"-16

1шт.

Выбрано товаров: 12
