(35.734.AC[03]) - QUICK COUPLER, VALVE

Запчасти Case 580SN (35.734.AC[03]) - QUICK COUPLER, VALVE (35) - HYDRAULIC SYSTEMS

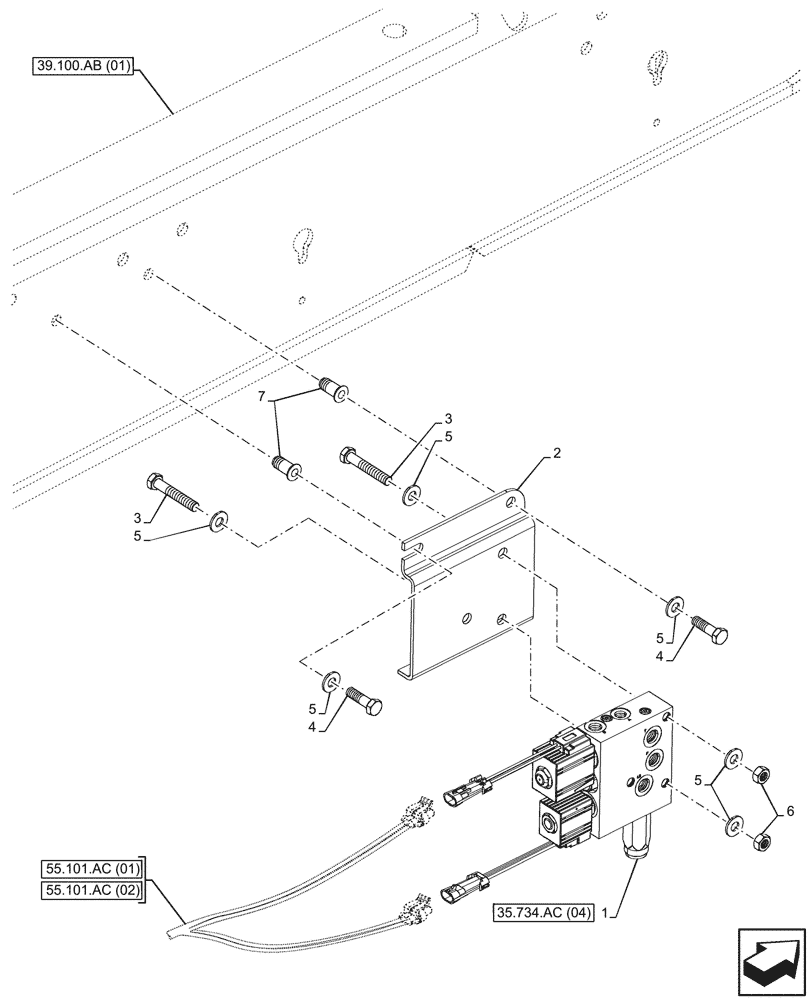

Схема запчастей Case 580SN - (35.734.AC[03]) - QUICK COUPLER, VALVE (35) - HYDRAULIC SYSTEMS
39.100.ab (01)
5
5
2
5
5
1
7
4
6
3
5
4
3
35.734.ac (04)
55.101.ac (02)
55.101.ac (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87435909

SOLENOID VALVE

ASSY, Hydraulic Coupler

1шт.

2

84275116

BRACKET

Coupler Valve

1шт.

3

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

4

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

5

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

6шт.

6

86500689

NUT,M10 x 1.5, Cl 10

2шт.

7

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

2шт.
