(35.734.AC[01]) - QUICK COUPLER, VALVE

Запчасти Case 580SN (35.734.AC[01]) - QUICK COUPLER, VALVE (35) - HYDRAULIC SYSTEMS

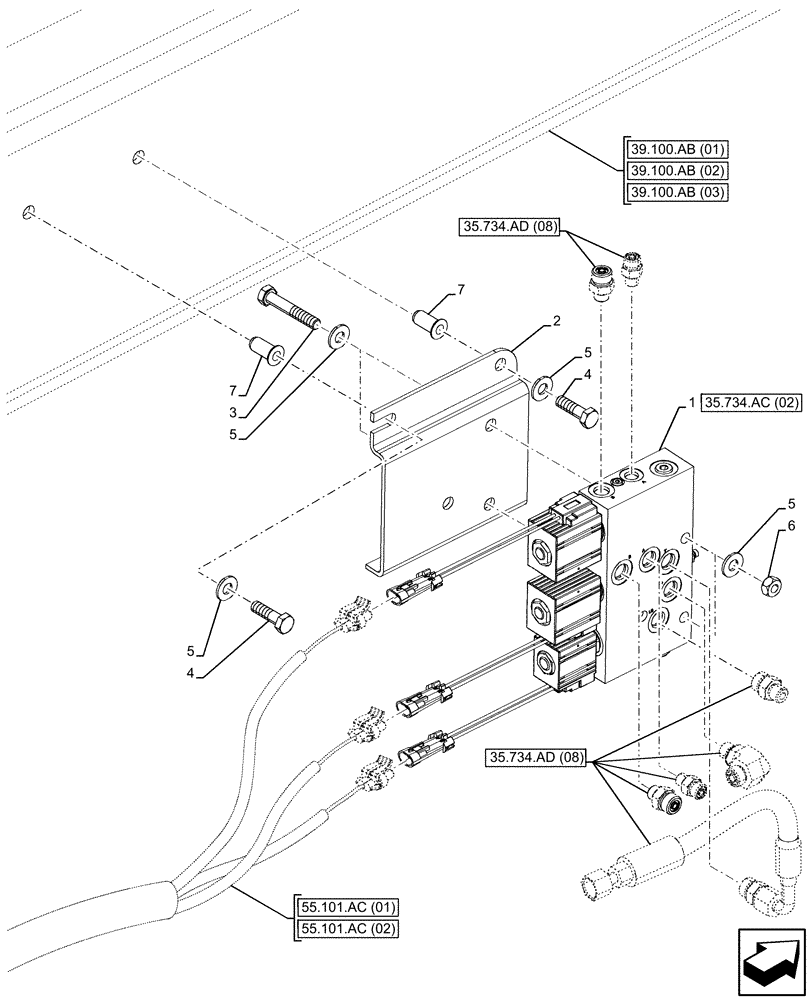

Схема запчастей Case 580SN - (35.734.AC[01]) - QUICK COUPLER, VALVE (35) - HYDRAULIC SYSTEMS
35.734.ad (08)
1
3
5
6
7
5
7
4
2
5
5
4
35.734.ac (02)
39.100.ab (03)
39.100.ab (02)
55.101.ac (02)
39.100.ab (01)
55.101.ac (01)
35.734.ad (08)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87435910

SOLENOID VALVE

Hydraulic Coupler, Double, ASSY

1шт.

2

84275116

BRACKET

Coupler Valve

1шт.

3

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

4

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

5

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

6шт.

6

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

7

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

2шт.
