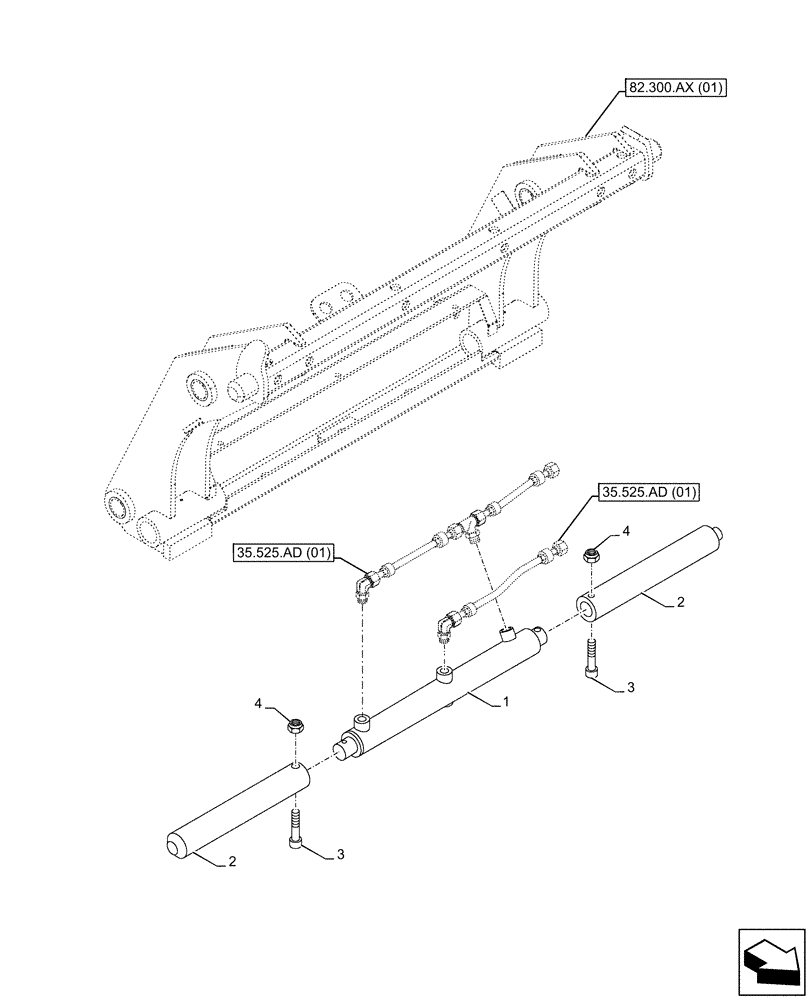

Запчасти Case 580SN (35.734.AA[02]) - VAR - 423049 - QUICK COUPLER, CYLINDER (35) - HYDRAULIC SYSTEMS

1

305499A1

HYDRAULIC CYLINDER,25.4mm Rod, 203.2mm Stroke

ASSY

1шт.

2

305496A1

PIN,49.23mm OD x 381mm L

2шт.

3

280259

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 8

2шт.

4

87034524

NUT,Prevailing Torque, 3/8” - 16, Gr A

2шт.
