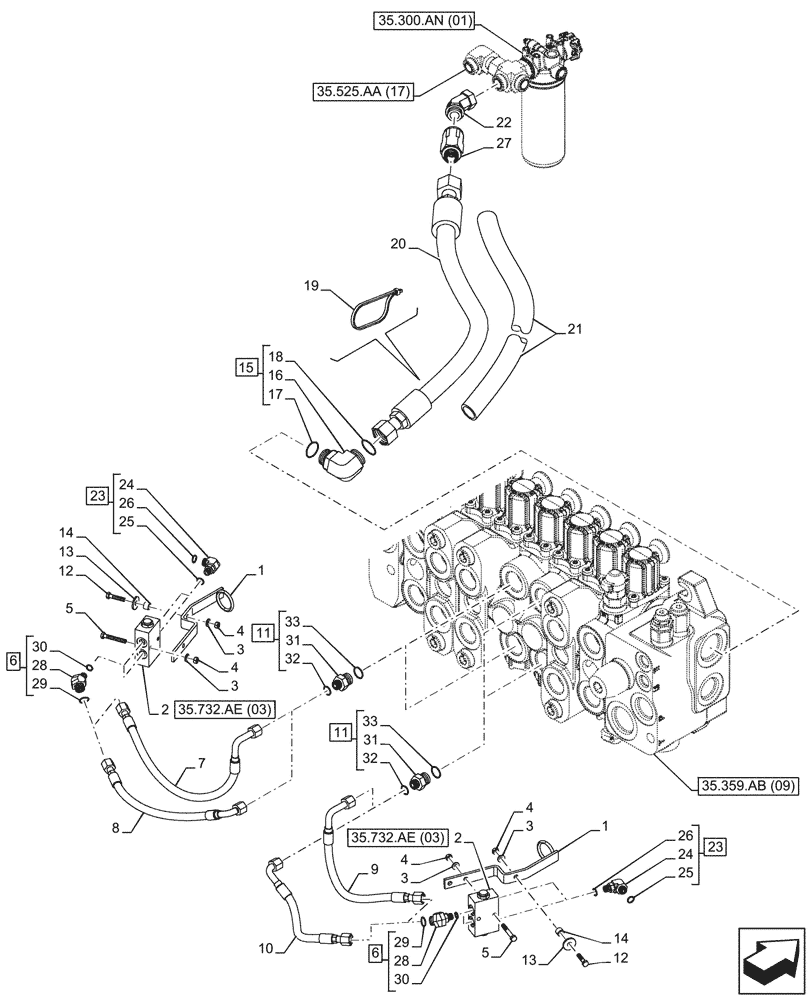

Запчасти Case 580SN (35.732.AE[01]) - STABILIZER, CONTROL, PILOT CONTROLS, MECHANICAL (35) - HYDRAULIC SYSTEMS

1

87450318

BRACKET

2шт.

2

85802820

CHECK VALVE

ASSY

2шт.

3

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

6шт.

4

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

6шт.

5

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

4шт.

6

201-321

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

ASSY, Incl 28 (Qty 1), 29 (Qty 1), 30 (Qty 1)

4шт.

7

84256420

HYD TUBE,10mm ID x 529mm L

10mm ID x 529mm L, Stabilizer Check to Backhoe Valve

1шт.

8

84256421

HYD TUBE,10mm ID x 410mm L

10mm ID x 410mm L, Stabilizer Check to Backhoe Valve

1шт.

9

84256418

HYD TUBE,10mm ID x 455mm L

10mm ID x 455mm L, Stabilizer Check to Backhoe Valve

1шт.

10

84256419

HYD TUBE,10mm ID x 355mm L

10mm ID x 355mm L, Stabilizer Check to Backhoe Valve

1шт.

11

87582906

HYD CONNECTOR,13/16" - 16 ORFS x 1-1/16" - 12 ORB

ASSY, Incl 31 (Qty 1), 32 (Qty 1), 33 (Qty 1)

4шт.

12

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

13

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

2шт.

14

87437840

SPACER,11.5mm L

2шт.

15

9824055

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-5/16" - 12 ORB

ASSY, Incl 16 - 18

1шт.

16

NSS

NOT SOLD SEPARAT

Connector, Incl in 15

1шт.

17

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

18

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

19

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

20

84257105

HYDRAULIC HOSE,25.4mm ID x 924mm L

1шт.

21

87656501

HOSE PROTECTION,340.00 mm ID x 540.00 mm

1шт.

22

84256602

45 ELBOW,16 ORB Male x 16 ORFS Female

1шт.

23

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

ASSY, Incl 24 (Qty 1), 25 (Qty 1), 26 (Qty 1)

4шт.

24

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 23

4шт.

25

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

26

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

27

84377913

CHECK VALVE

Backhoe Pressure

1шт.

28

NSS

NOT SOLD SEPARAT

45° Elbow, Incl in 6

4шт.

29

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

30

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

4шт.

31

NSS

NOT SOLD SEPARAT

Connector, Incl in 11

4шт.

32

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

33

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

4шт.
