(35.726.AU[03]) - EXTENDABLE DIPPER, AUXILIARY HYDRAULIC

Запчасти Case 580SN (35.726.AU[03]) - EXTENDABLE DIPPER, AUXILIARY HYDRAULIC (35) - HYDRAULIC SYSTEMS

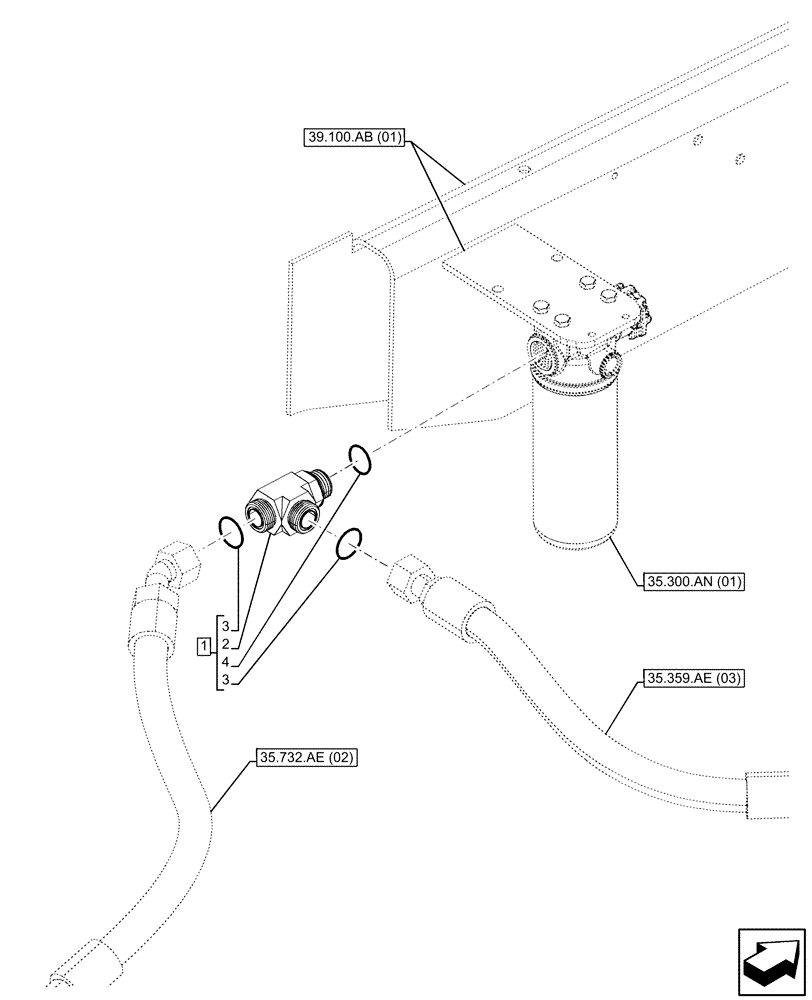

Схема запчастей Case 580SN - (35.726.AU[03]) - EXTENDABLE DIPPER, AUXILIARY HYDRAULIC (35) - HYDRAULIC SYSTEMS
35.732.ae (02)
2
3
4
1
3
35.359.ae (03)
35.300.an (01)
39.100.ab (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

201-407

TEE,1 7/16"-12 x 1 5/16"-12 Run, ORFS

ASSY, Incl 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Tee, Incl in 1

1шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

2шт.

4

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.
