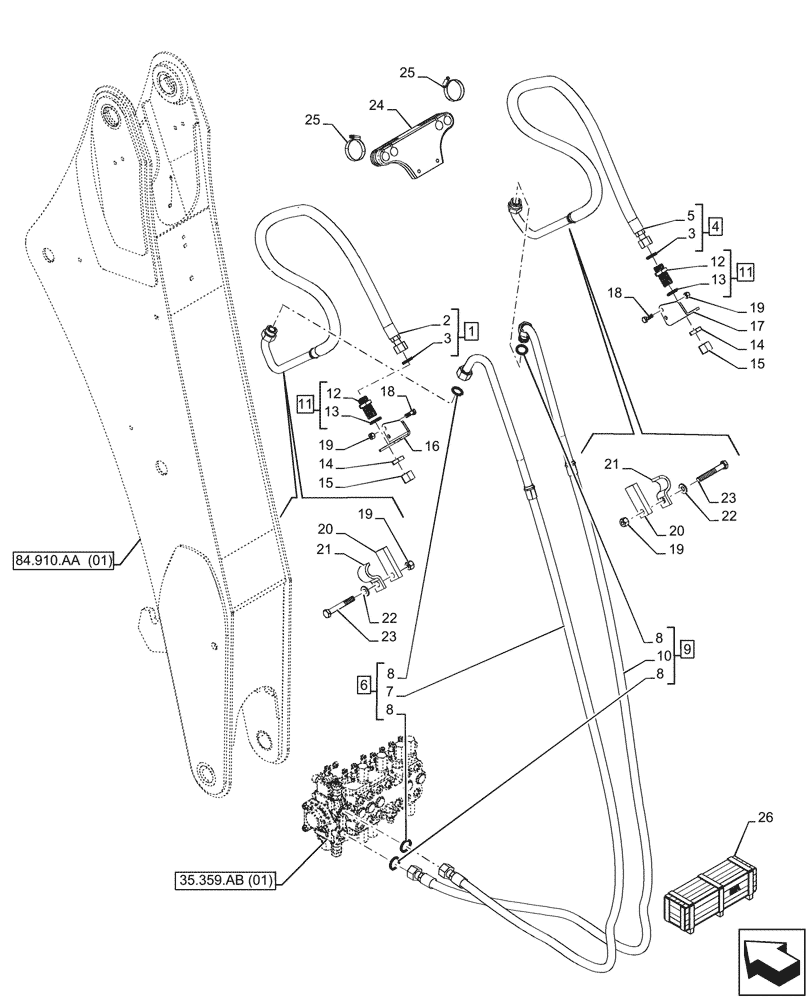

Запчасти Case 580SN (35.726.AU[02]) - EXTENDABLE DIPPER, AUXILIARY HYDRAULIC (35) - HYDRAULIC SYSTEMS

1

84312502

HYD TUBE,19mm ID x 1656mm L

ASSY, Extendable Valve to Auxiliary Port B, 1656mm L, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Tube, Incl in 1

1шт.

3

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

4

84312504

HYD TUBE,19mm ID x 1656mm L

ASSY, Extendable Valve to Auxiliary Port A, 1656mm L, Incl 3, 5

1шт.

5

NSS

NOT SOLD SEPARAT

Tube, Incl in 4

1шт.

6

84323529

TUBE

ASSY, Extendable Valve to Auxiliary Port B, 2780mm L, Incl 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

Tube, Incl in 6

1шт.

8

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

4шт.

9

84280508

HYD TUBE,19mm ID x 2756mm L

ASSY, Extendable Valve to Auxiliary Port A, 2756mm L, Incl 8, 10

1шт.

10

NSS

NOT SOLD SEPARAT

Tube, Incl in 9

1шт.

11

201-140

HYD CONNECTOR,1-3/16" - 12, Blkhd, ORFS

ASSY, Incl 12, 13

2шт.

12

NSS

NOT SOLD SEPARAT

Connector, Incl in 11

2шт.

13

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

14

218-1249

BHD LOCK NUT,1-3/16" - 12

2шт.

15

201-907

CAP,1-3/16" - 12 ORFS

2шт.

16

84305006

BRACKET

LH

1шт.

17

84305054

BRACKET

RH

1шт.

18

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

4шт.

19

412141

NUT,M10 x 1.5, Cl 8

6шт.

20

84299978

PLATE

2шт.

21

242459A1

SHIN

2шт.

22

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

23

83931335

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

2шт.

24

84359766

SUPPORT

1шт.

25

214-3156

HOSE CLAMP,2-3/4" - 3-5/8", HD Worm

2шт.

26

84546982

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Mechanical Control, Extendable Dipper, Incl 1, 2, 4 - 7, 9 - 12, 14 - 18, 20, 21, 23 - 25

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

26

47674139

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Mechanical Control, Extendable Dipper, Incl 1, 2, 4 - 7, 9 - 12, 14 - 18, 20, 21, 23 - 25

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

26

47674177

CONSTRUCTION DIA

Uni-Dir, Mechanical Control, Extendable Dipper, Incl 1, 2, 4 - 7, 9 - 12, 14 - 18, 20, 21, 23 - 25

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

26

84546989

CONSTRUCTION DIA

Uni-Dir, Mechanical Control, Extendable Dipper, Incl 1, 2, 4 - 7, 9 - 12, 14 - 18, 20 - 25

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

26

47359725

CONSTRUCTION DIA

Uni-Dir, Pilot Control, Extendable Dipper, Incl 1, 2, 4 - 7, 9 - 12, 14 - 18, 20 - 25

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

26

47501547

CONSTRUCTION DIA

No Auxiliary to Combo, Pilot Control, Extendable Dipper, Incl 1, 2, 4 - 7, 9 - 12, 14 - 18, 20, 21, 23 - 25

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

26

47662021

CONSTRUCTION DIA

No Auxiliary to Combo, Pilot Control, Extendable Dipper, Incl 1, 2, 4 - 7, 9 - 12, 14 - 18, 20, 21, 23 - 25

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
