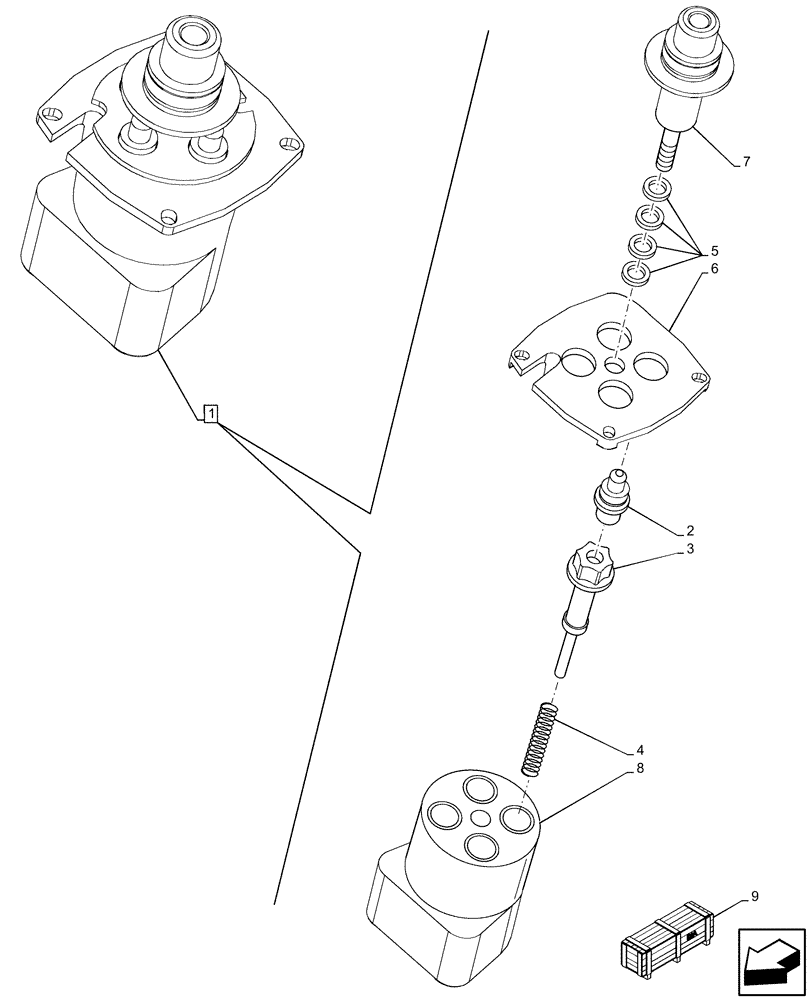

Запчасти Case 580SN (35.726.AE[03]) - 6-SPOOL, 7-SPOOL, 8-SPOOL, PILOT VALVE, JOYSTICK (35) - HYDRAULIC SYSTEMS

1

87687141

PILOT VALVE

ASSY, Incl 2 - 8

1шт.

1

87687141R

REMAN-HYD VALVE

Reman Assy, Incl 2 - 8

1шт.

1

87687141C

CORE-VALVE HYD

Core Return Number

1шт.

2

87473380

GUIDE

4шт.

3

87586772

PLATE

4шт.

4

87586773

KIT

1шт.

5

NSS

NOT SOLD SEPARAT

Ring, Incl in 1

4шт.

6

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

Command, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

9

47593980

CONSTRUCTION DIA

Dipper Oscillation, Incl 1 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
