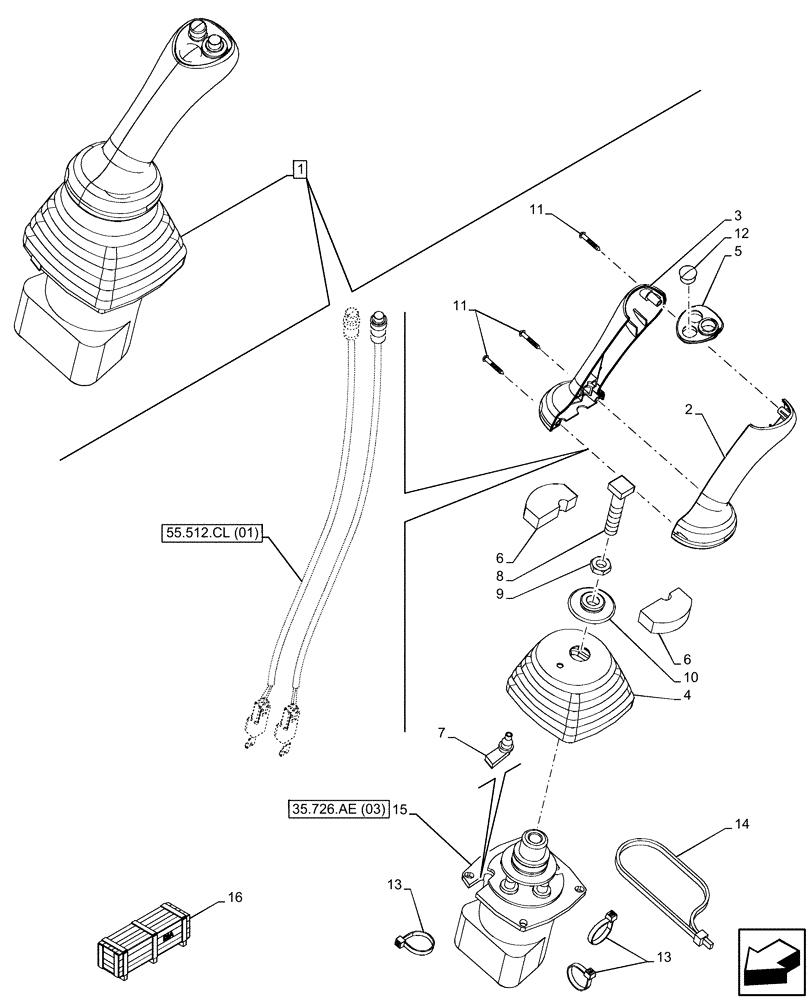

Запчасти Case 580SN (35.726.AE[02]) - 6-SPOOL, 7-SPOOL, PILOT CONTROLS, JOYSTICK, LH (35) - HYDRAULIC SYSTEMS

1

87685953

JOYSTICK

ASSY, LH, Incl 2 - 15

1шт.

See Joystick Components also in Figure 55.512.CL (01)

1шт.

2

87308839

HANDLE GRIP

1шт.

3

87308838

HANDLE GRIP

1шт.

4

87443721

BOOT

1шт.

5

87435243

BEZEL

1шт.

6

87435506

SEAL,52mmL

2шт.

7

87424267

GROMMET

1шт.

8

87428023

BOLT,Square Head, M12 x 1.75 x 60

1шт.

9

87037944

THIN NUT,Thin, M12 x 1.75, Cl 05

1шт.

10

87436225

RETAINER,12.5mm ID, 46mm OD

1шт.

11

15687475

SELF-TAP SCREW,Pan Hd, M3.5 x 25mm, SST

3шт.

12

86625128

PLUG,Dome, .562" hole, Nylon

1шт.

13

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

14

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

15

87687141

PILOT VALVE

ASSY

1шт.

15

87687141R

REMAN-HYD VALVE

Reman Assy

1шт.

15

87687141C

CORE-VALVE HYD

Core Return Number

1шт.

16

47593980

CONSTRUCTION DIA

Dipper Oscillation, Incl 1 - 15

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
