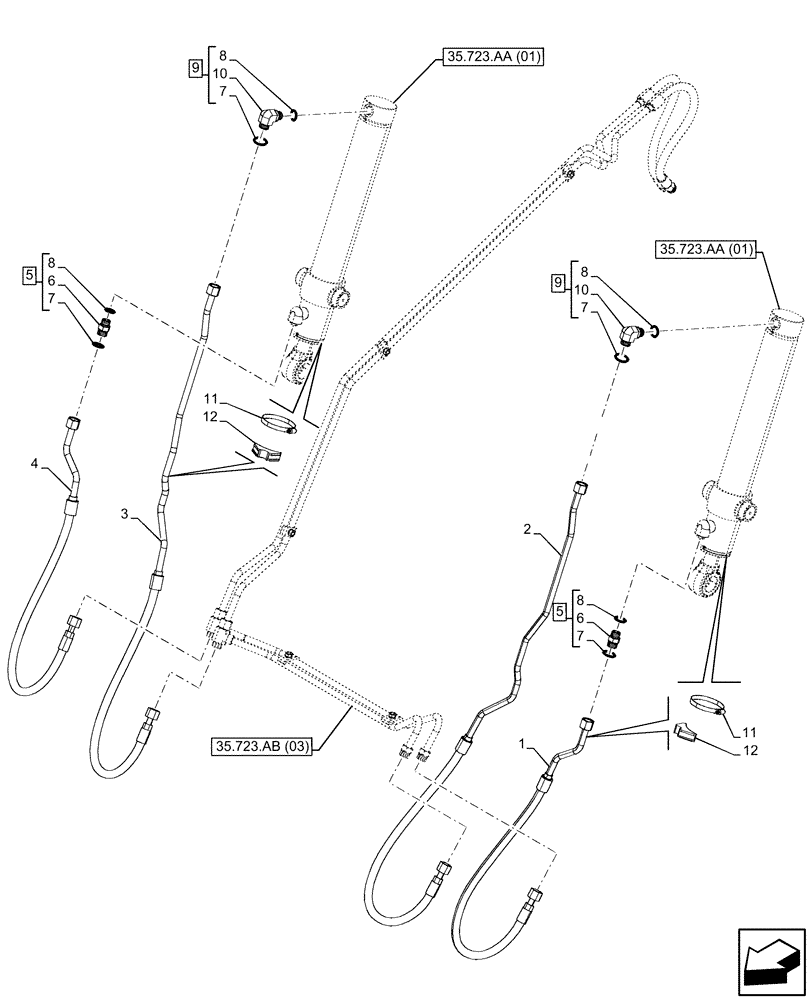

Запчасти Case 580SN (35.723.AB[02]) - BUCKET CYLINDER (35) - HYDRAULIC SYSTEMS

1

84307497

HYD TUBE

RH, Dump Lower

1шт.

2

84399671

TUBE

LH, Dump Port A

1шт.

3

84399689

TUBE

RH, Dump Port A

1шт.

4

84307492

HYD TUBE

LH, Dump Lower

1шт.

5

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

ASSY, Incl 6 (Qty 1), 7 (Qty 1), 8 (Qty 1)

2шт.

6

NSS

NOT SOLD SEPARAT

Connector, Incl in 5

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

8

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

9

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

ASSY, Incl 7 (Qty 1), 8 (Qty 1), 10 (Qty 1)

2шт.

10

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 9

2шт.

11

9706924

HOSE CLAMP,103.1mm - 127mm

2шт.

12

L79937

SADDLE

2шт.
