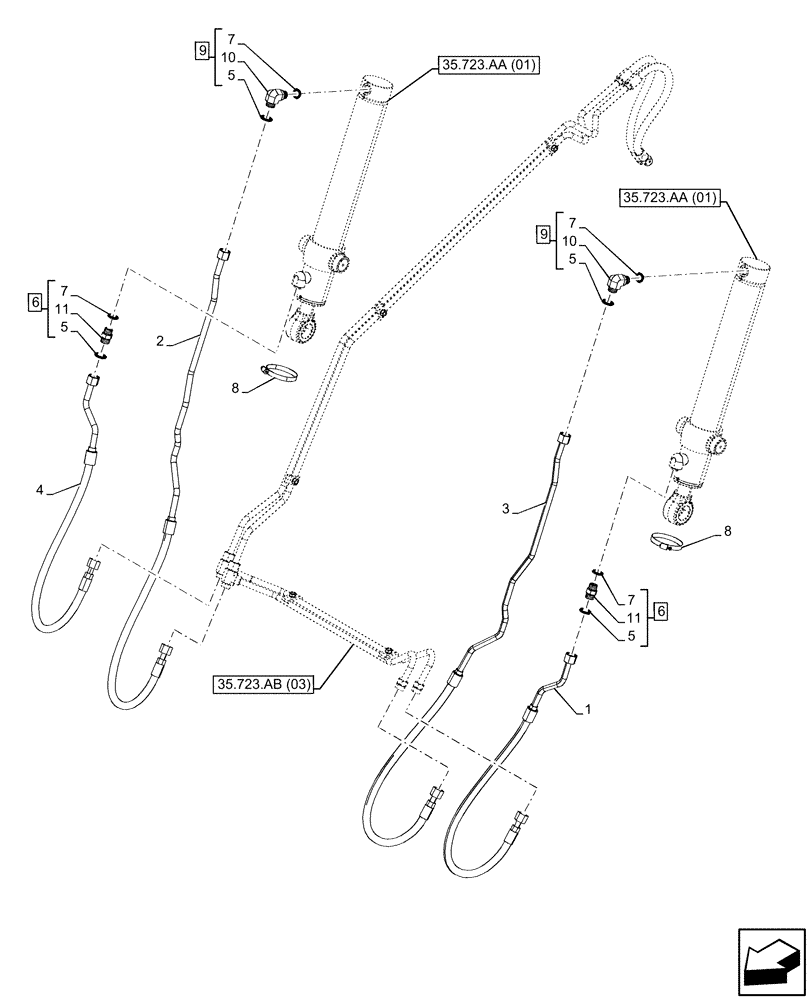

Запчасти Case 580SN (35.723.AB[01]) - BUCKET CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

1

84307497

HYD TUBE

RH, Damp Lower

1шт.

2

84307626

HYD TUBE

RH, Dump Port A

1шт.

3

84307629

HYD TUBE

LH, Dump Port A

1шт.

4

84307492

HYD TUBE

RH, Dump Lower

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

6

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

ASSY, Incl 5 (Qty 1), 7 (Qty 1), 11 (Qty 1)

2шт.

7

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

8

86625034

HOSE CLAMP,90.4mm - 114.3mm, Worm Gear

2шт.

9

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

ASSY, Incl 5 (Qty 1), 7 (Qty 1), 10 (Qty 1)

2шт.

10

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 9

2шт.

11

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

2шт.
