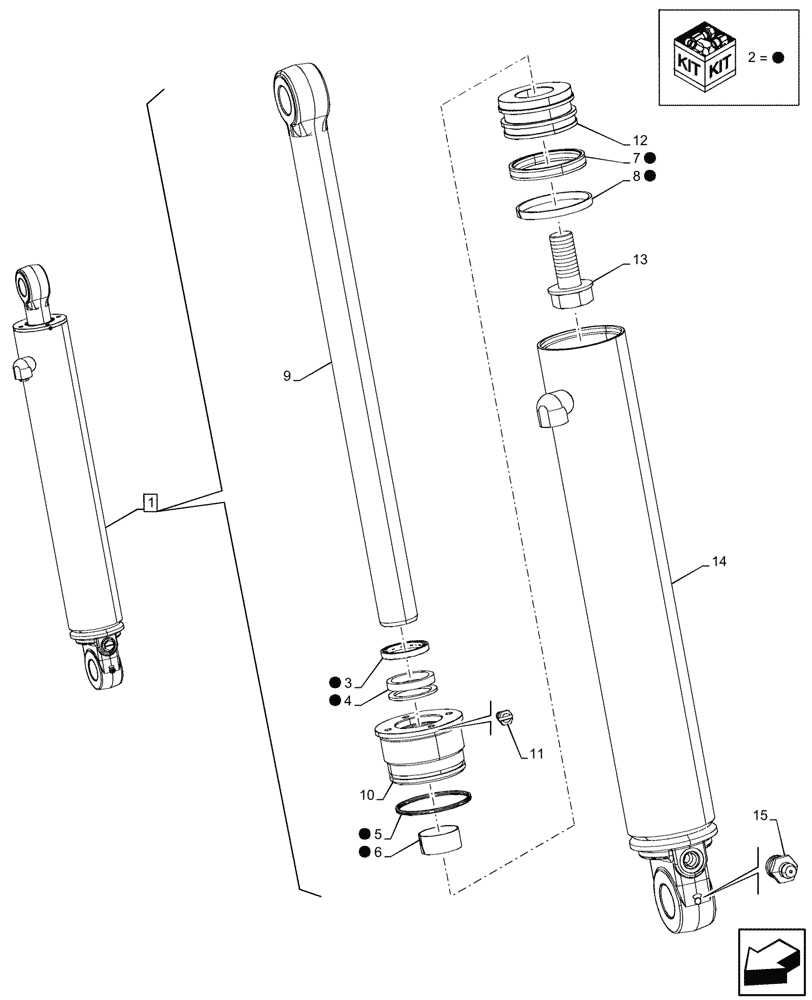

Запчасти Case 580SN (35.703.AG[02]) - STABILIZER CYLINDER, RH, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84421606

HYDRAULIC CYLINDER,Double Acting, 57.2mm Rod, 114.3mm Bore, 542.9mm Stroke

Stabilizer RH, ASSY, (Determine From Seat Facing Radiator) Incl 2 - 15

1шт.

2

84259227

SEAL KIT,57.2mm Rod x 114.3mm Bore

Seal Repair 114.3mm x 57.2mm, Incl 3 - 9

1шт.

3

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

1шт.

4

1542877C1

SEAL KIT,57.2mm Rod

1шт.

5

87615484

SEAL,108.43mm ID x 113.93mm OD x 5.41mm Thk

1шт.

6

1346476C1

RING,57.15mm ID, Int

1шт.

7

87715787

SEAL,114.3mm OD

1шт.

8

G101996

WEAR RING,4.5" OD x 0.75" Thk

1шт.

9

84222154

ROD,57.2mm OD x 771.4mm L

1шт.

10

84238794

GLAND

1шт.

11

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

12

84228260

PISTON ROD/GLAND,113.64mm Bore, 57.25mm Rod, 56.45mm W

1шт.

13

86982442

SPECIAL BOLT,Hex, 12, 1 1/4 x 3.25"

1шт.

14

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.
