(35.701.BR[08]) - RIDE CONTROL, VALVE, HYDRAULIC LINE

Запчасти Case 580SN (35.701.BR[08]) - RIDE CONTROL, VALVE, HYDRAULIC LINE (35) - HYDRAULIC SYSTEMS

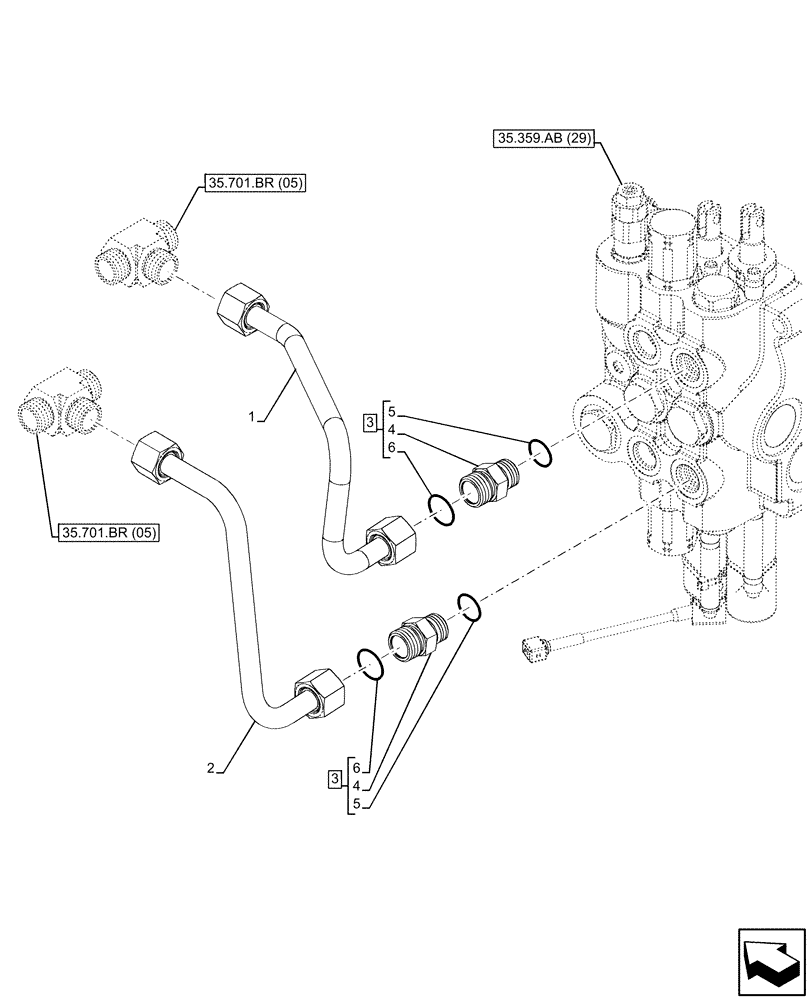

Схема запчастей Case 580SN - (35.701.BR[08]) - RIDE CONTROL, VALVE, HYDRAULIC LINE (35) - HYDRAULIC SYSTEMS
35.359.ab (29)
2
4
1
5
6
5
4
3
6
3
35.701.br (05)
35.701.br (05)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84293154

TUBE

Loader Lift Port A

1шт.

2

84293149

TUBE

Loader Lift Port B

1шт.

3

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

ASSY, Incl 4 - 6

4шт.

4

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

1шт.

5

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

6

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Выбрано товаров: 6
