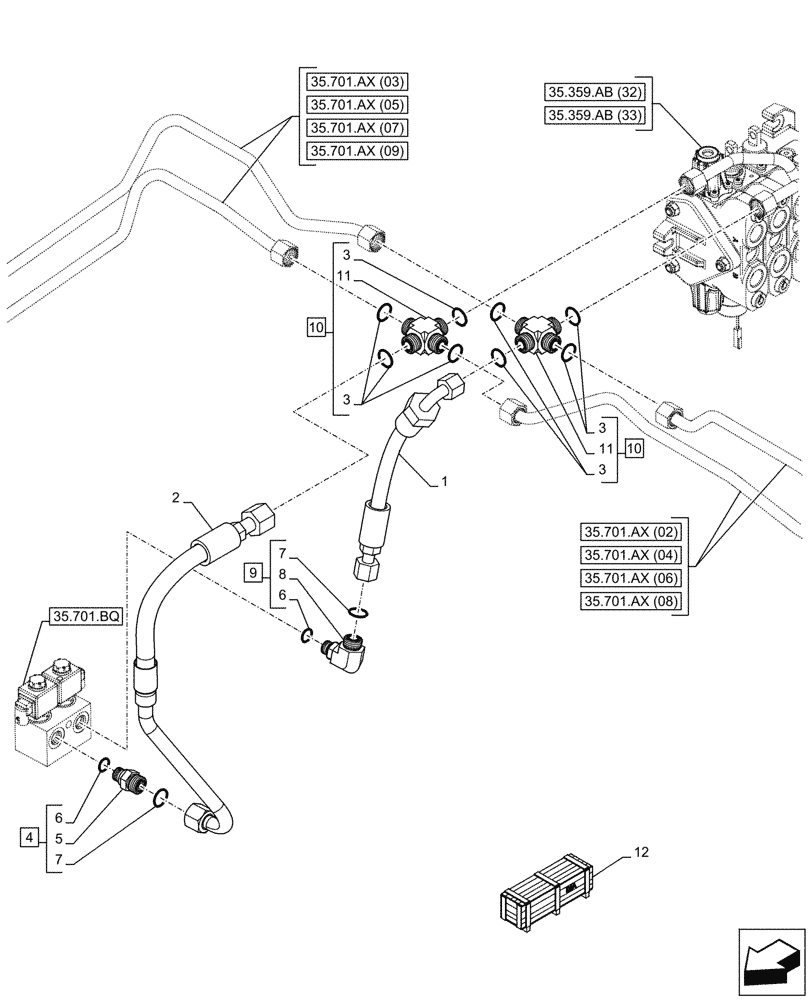

Запчасти Case 580SN (35.701.BR[06A]) - VAR - 747873 - RIDE CONTROL, VALVE, HYDRAULIC LINE - BEGIN YR 13-JUN-2015 (35) - HYDRAULIC SYSTEMS

1

47473494

HYDRAULIC HOSE,12.5mm ID x 341.8mm L, SAE 100R16 Type S

Ride Control P2 Port

1шт.

2

84290490

HYD TUBE

Ride Control P1 Port

1шт.

3

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

8шт.

4

201-115

HYD CONNECTOR,1" - 14 Male ORFS x 3/4" - 16 Male ORB

ASSY, Incl 5, 6 (Qty 1), 7 (Qty 1)

1шт.

5

NSS

NOT SOLD SEPARAT

Connector, Incl in 4

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

7

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

8

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 9

1шт.

9

201-343

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 3/4" - 16 Male ORB

ASSY, Incl 6 (Qty 1), 7 (Qty 1), 8

1шт.

10

87338053

4 WAY CONNECTION

ASSY, Incl 3 (Qty 4), 11

2шт.

11

NSS

NOT SOLD SEPARAT

Cross, Incl in 10

2шт.

12

47858495

CONSTRUCTION DIA

Ride Control Not Regulated TLB, Incl 1 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N is shown

1шт.
