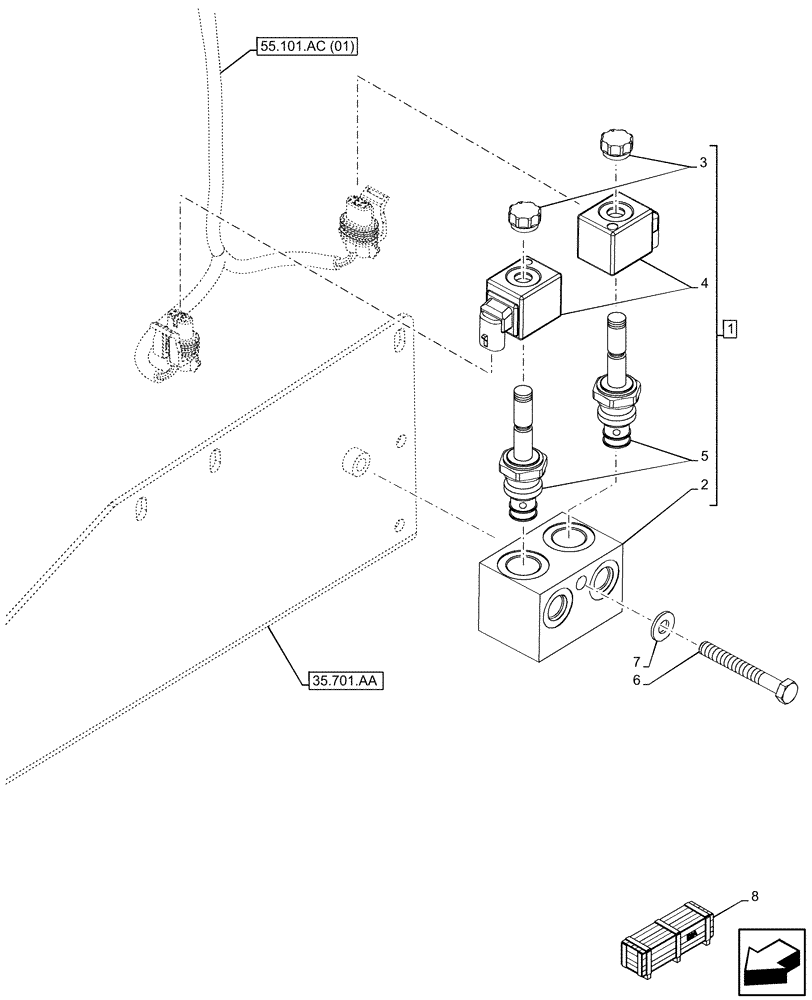

Запчасти Case 580SN (35.701.BQ) - VAR - 747873 - RIDE CONTROL, VALVE (35) - HYDRAULIC SYSTEMS

1

84348784

SOLENOID VALVE

Ride Control, ASSY, Incl 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

3

9970384

RING NUT

2шт.

4

84478803

COIL

2шт.

5

84519540

SOLENOID VALVE

2шт.

6

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

1шт.

7

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

8

47858495

CONSTRUCTION DIA

Ride Control Not Regulated TLB, Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
