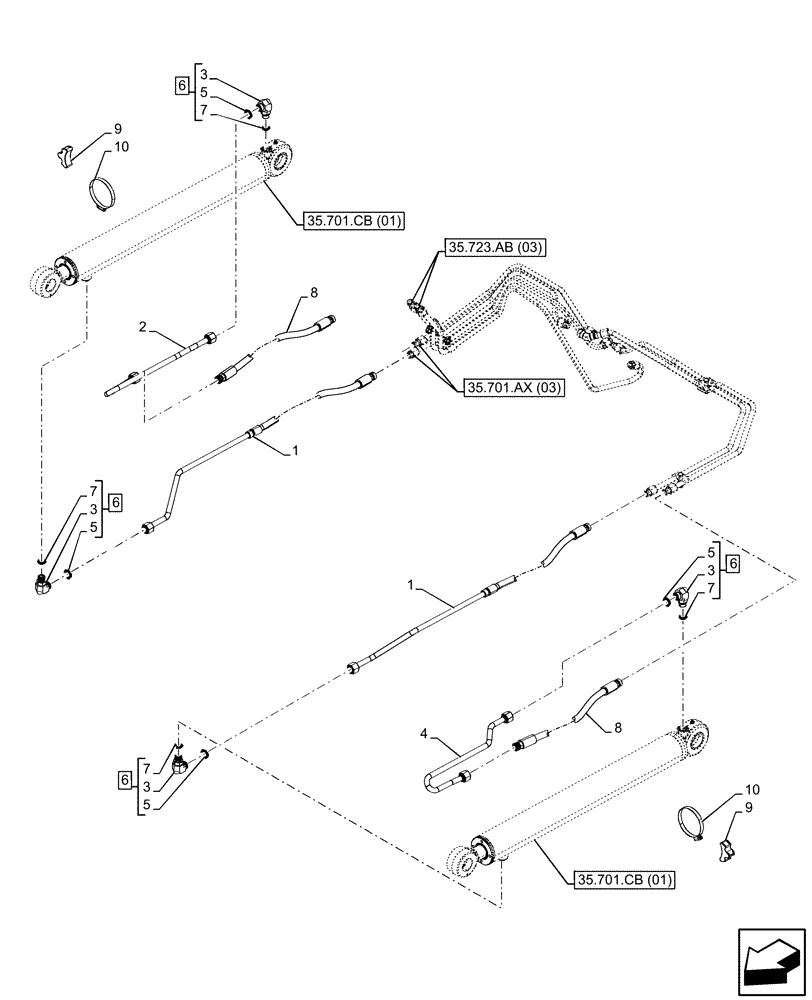

Запчасти Case 580SN (35.701.AX[02]) - LOADER, CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

1

84294590

HYD TUBE

Lift Port A

2шт.

2

84295697

HYD TUBE

RH Loader Lift Port B

1шт.

3

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 6

4шт.

4

84295087

HYD TUBE

LH Loader Lift Port B

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

6

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

ASSY, Incl 3 (Qty 1), 5 (Qty 1), 7 (Qty 1)

4шт.

7

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

8

84351615

HOSE ASSY.,12.5mm ID x 526mm L

Loader Lift Head End

2шт.

9

84296626

SECURING STRAP

2шт.

10

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

2шт.
