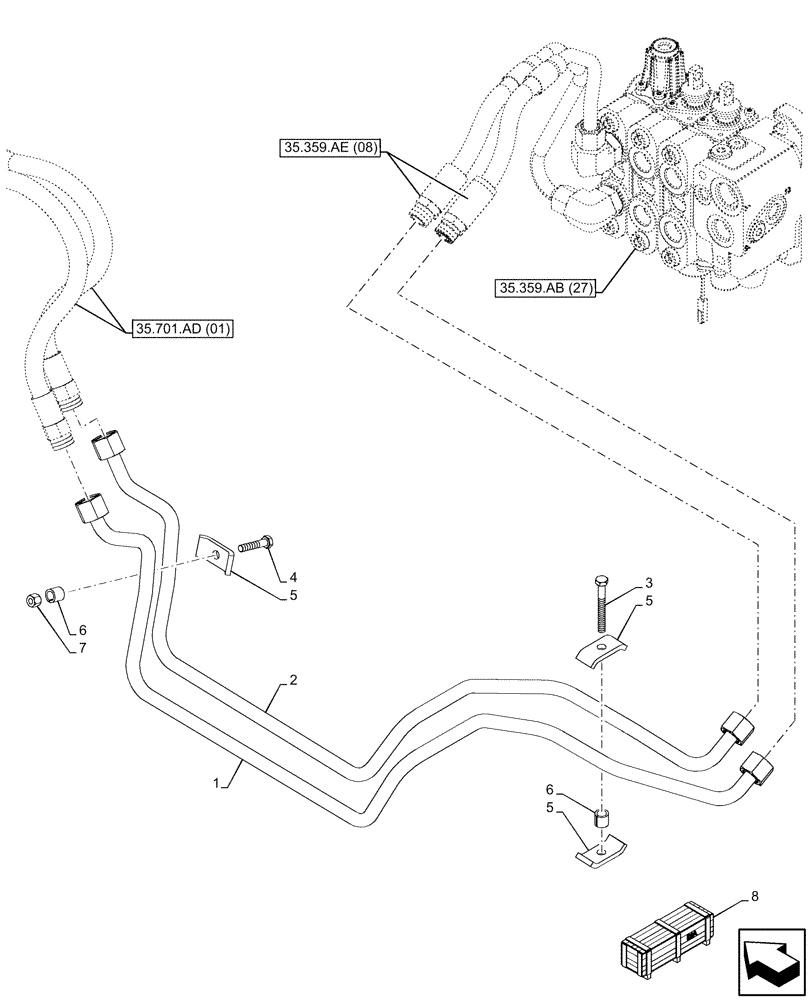

Запчасти Case 580SN (35.701.AD[04]) - VAR - 747864 - LOADER BUCKET, AUXILIARY HYDRAULIC (35) - HYDRAULIC SYSTEMS

1

84293011

TUBE

4N1 Port A

1шт.

2

84293009

TUBE

4N1 Port B

1шт.

3

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

1шт.

4

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

5

D138055

CLAMP

3шт.

6

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

2шт.

7

16104121

NUT,M8 x 1.25, Cl 10

1шт.

8

47788201

CONSTRUCTION DIA

3 Spool, Mechanical Control, Powershift Transmission, Incl 1 - 3, 6, 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

47661816

CONSTRUCTION DIA

3 Spool, Mechanical Control, Standard Transmission, Incl 1 - 3, 6, 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

47661824

CONSTRUCTION DIA

3 Spool, Mechanical Control, Powershift Transmission, Incl 1 - 3, 6, 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

47661818

CONSTRUCTION DIA

3 Spool, Pilot Control, Standard Transmission, Incl 1 - 3, 6, 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
