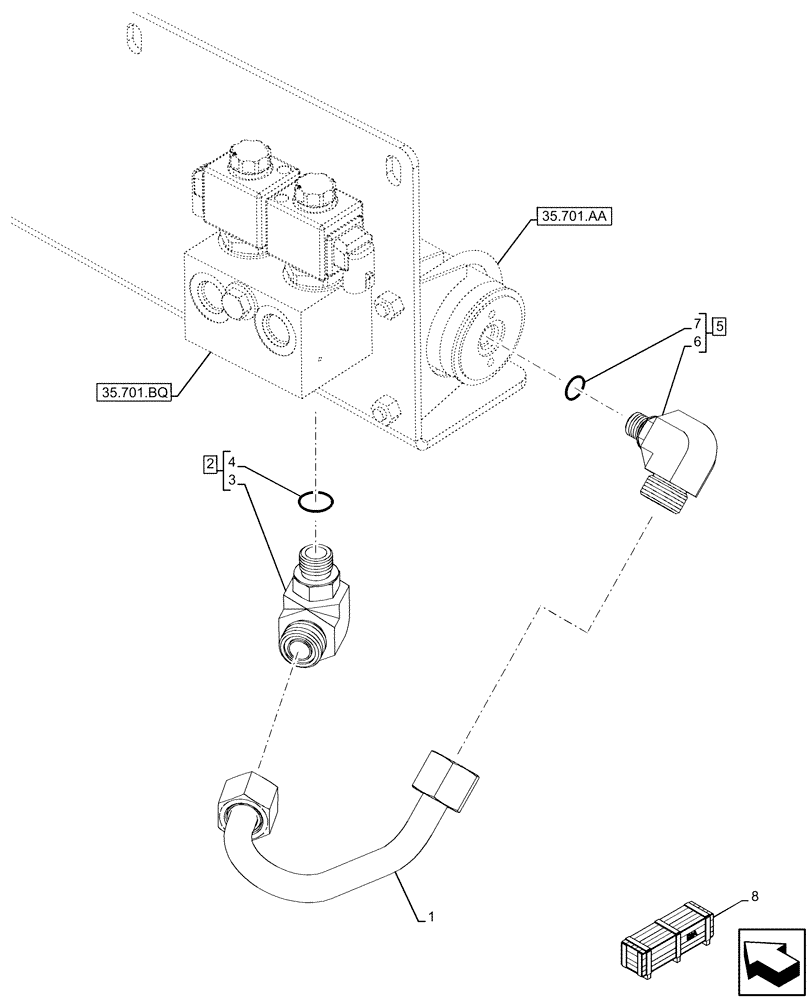

Запчасти Case 580SN (35.701.AC[01]) - VAR - 747873 - RIDE CONTROL, ACCUMULATOR, HYDRAULIC LINE - END YR 28-OCT-2016 (35) - HYDRAULIC SYSTEMS

1

84232491

HYD TUBE

Ride Control Valve to Accumulator

1шт.

2

201-343

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 3/4" - 16 Male ORB

ASSY, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 2

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

201-312

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 9/16" - 18 Male ORB

ASSY, Incl 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 5

1шт.

7

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

8

47858495

CONSTRUCTION DIA

Ride Control Not Regulated TLB, Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
