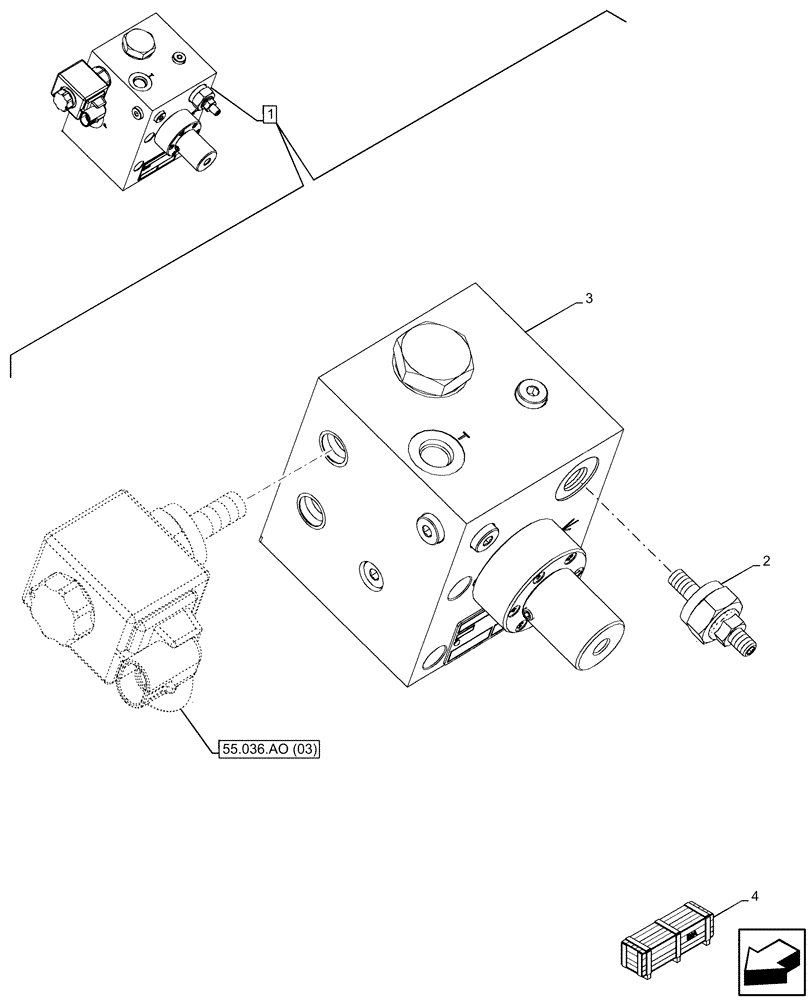

Запчасти Case 580SN (35.525.AI[06]) - VAR - 747662 - AUXILIARY CONTROL VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84247110

VALVE

Closed Center Uni-Aux, ASSY, Incl 2, 3

1шт.

See Closed Center Uni-Aux Valve Components also in Figure 55.036.AO (03)

1шт.

2

9970178

VALVE PRESSURE RELIE

1шт.

3

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

1шт.

4

47662021

CONSTRUCTION DIA

No Auxiliary to Combo, Pilot Control, Extendable Dipper, Incl 1 - 3

1шт.

Valid for 580SN Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
