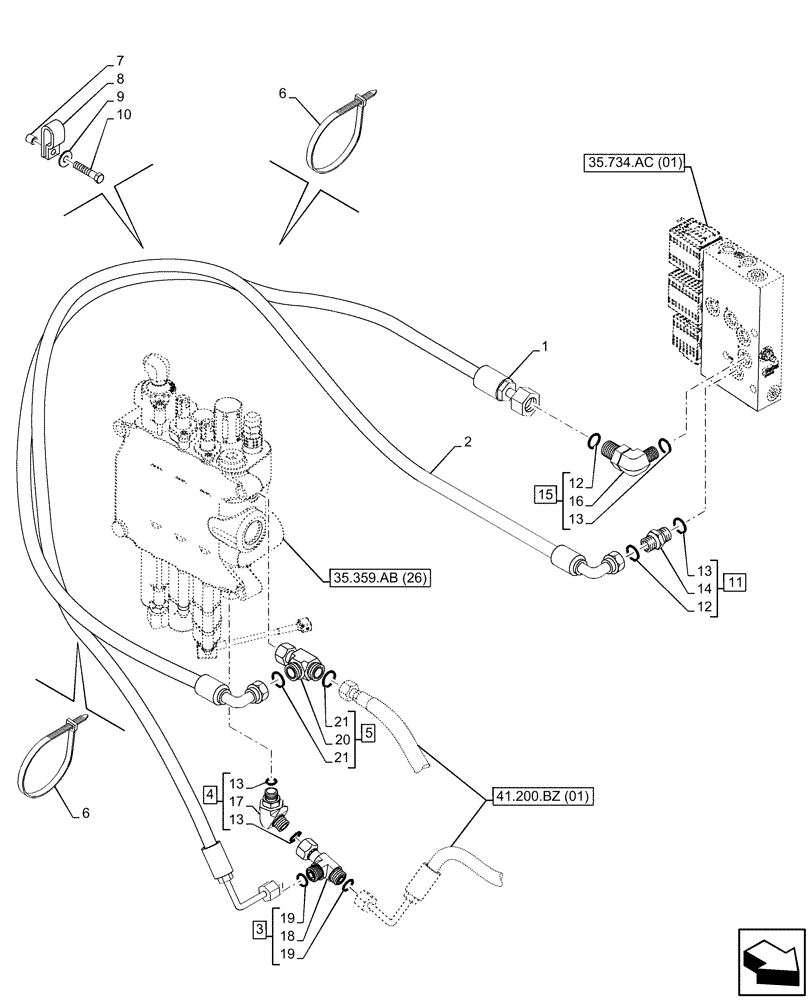

Запчасти Case 580SN (35.525.AD[04]) - QUICK COUPLER, LINES (35) - HYDRAULIC SYSTEMS

1

84298502

HOSE ASSY.,10mm ID x 1732mm L, SAE 100R16 Type S

Quick Coupler Pressure

1шт.

2

84329300

HOSE ASSY.,6.3mm ID x 1796mm L, SAE 100R16 Type S

Quick Coupler Valve to Mechanical 3-Spool Loader Valve

1шт.

3

83961945

TEE,9/16"-18 ORFS x 9/16"-18 Fem Sw Run

ASSY, Incl 18, 19

1шт.

4

201-328

ELBOW,45 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

ASSY, Incl 13, 17

1шт.

5

86514261

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

ASSY, Incl 20, 21

1шт.

6

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

7

84420571

SPACER,13.51mm ID x 19.05mm OD x 20mm L

1шт.

8

L302731

CLAMP,19mm D Clamping Pipes

1шт.

9

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

1шт.

10

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

1шт.

11

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

ASSY, Incl 12 - 14

1шт.

12

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

13

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

14

NSS

NOT SOLD SEPARAT

Connector, Incl in 11

1шт.

15

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

ASSY, Incl 12, 13, 16

1шт.

16

NSS

NOT SOLD SEPARAT

Elbow, Incl in 14

1шт.

17

NSS

NOT SOLD SEPARAT

Elbow, Incl in 4

1шт.

18

NSS

NOT SOLD SEPARAT

Tee, Incl in 3

1шт.

19

81844850

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

20

NSS

NOT SOLD SEPARAT

Union Tee, Incl in 5

1шт.

21

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.
