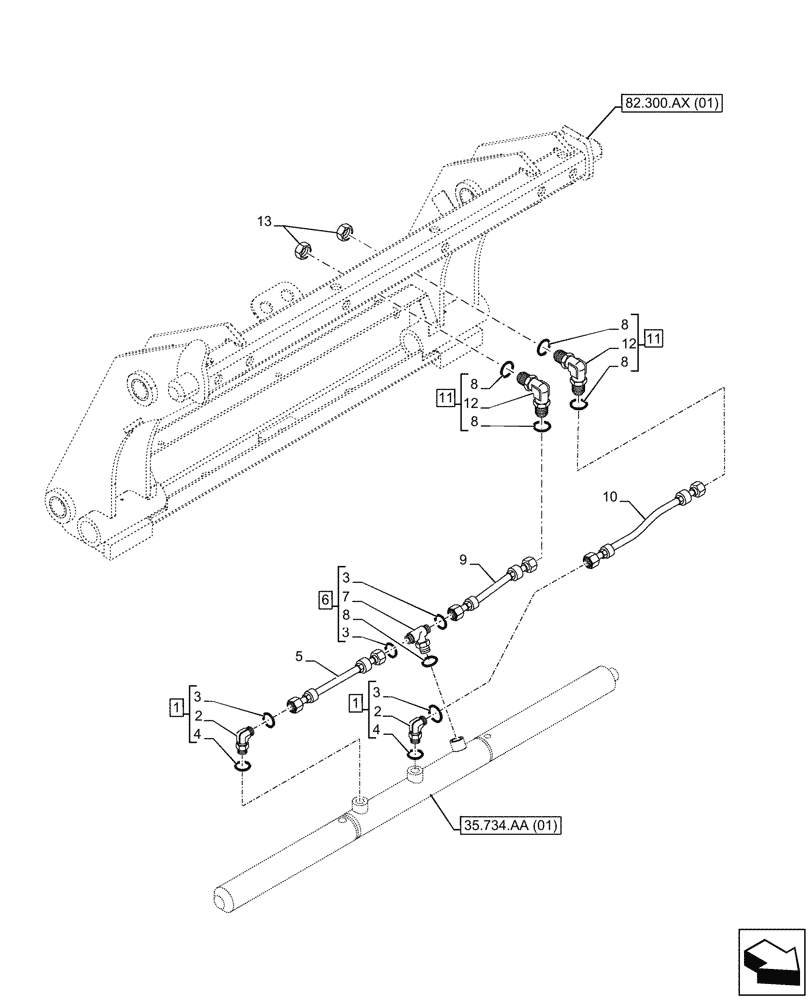

1
9840543
90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS
ASSY, Incl 2 (Qty 1), 3 (Qty 1), 4 (Qty 1)
2шт.
2
NSS
NOT SOLD SEPARAT
90° Elbow, Incl in 1
2шт.
3
9993141
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
2шт.
4
9617873
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
2шт.
5
84519649
HYDRAULIC HOSE,6.3mm ID x 241mm L
Tee to RH Cylinder Rod End
1шт.
6
84368922
BRANCH TEE,11/16"-16 ORFS x 9/16" ORB
ASSY, Incl 3 (Qty 2), 7, 8 (Qty 1)
1шт.
7
NSS
NOT SOLD SEPARAT
Tee, Incl in 6
1шт.
8
9825770
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
5шт.
9
84518946
HYDRAULIC HOSE,6.3mm ID x 244mm L
Bulkhead to Tee
1шт.
10
84518948
HYDRAULIC HOSE,6.3mm ID x 353mm L
Bulkhead to Cylinder
1шт.
11
84326219
90 ELBOW,9/16"-18 ORFS
ASSY, Incl 8 (Qty 2), 12 (Qty 1)
2шт.
12
NSS
NOT SOLD SEPARAT
90° Elbow, Incl in 11
2шт.
13
87310
NUT,Jam, 9/16"-18, G2
2шт.
