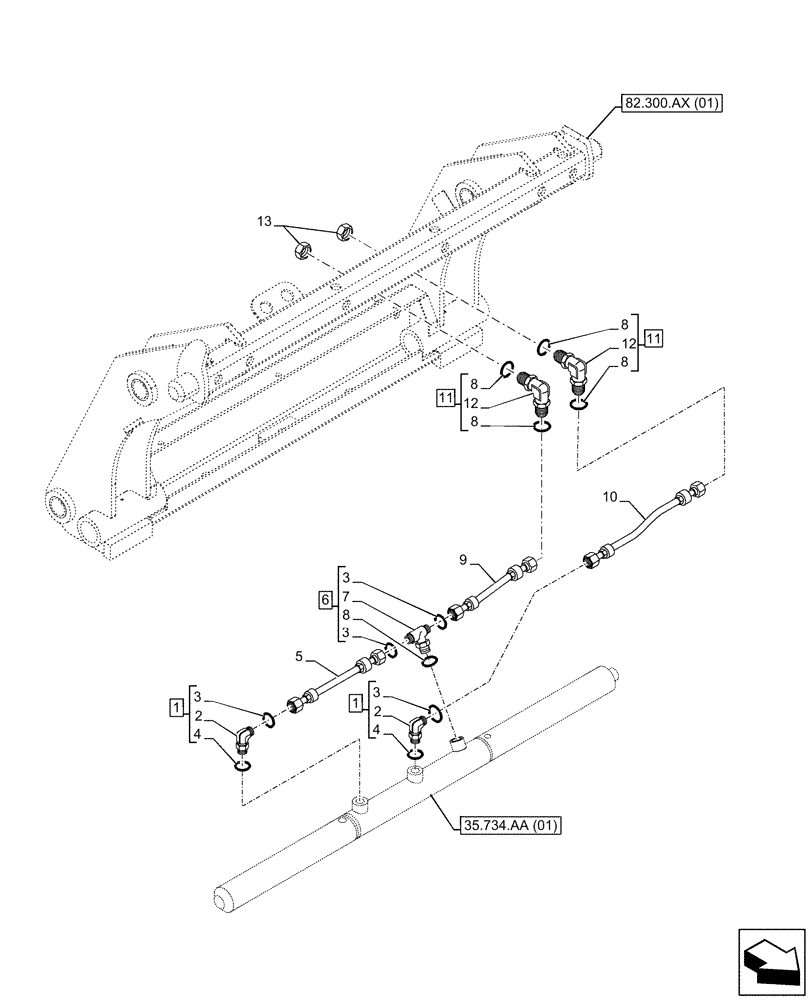

Запчасти Case 580SN (35.525.AD[01]) - VAR - 423049 - QUICK COUPLER, LINES (35) - HYDRAULIC SYSTEMS

1

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

ASSY, Incl 2 (Qty 1), 3 (Qty 1), 4 (Qty 1)

2шт.

2

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 1

2шт.

3

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

4

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

5

84519649

HYDRAULIC HOSE,6.3mm ID x 241mm L

Tee to RH Cylinder Rod End

1шт.

6

84368922

BRANCH TEE,11/16"-16 ORFS x 9/16" ORB

ASSY, Incl 3 (Qty 2), 7, 8 (Qty 1)

1шт.

7

NSS

NOT SOLD SEPARAT

Tee, Incl in 6

1шт.

8

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

5шт.

9

84518946

HYDRAULIC HOSE,6.3mm ID x 244mm L

Bulkhead to Tee

1шт.

10

84518948

HYDRAULIC HOSE,6.3mm ID x 353mm L

Bulkhead to Cylinder

1шт.

11

84326219

90 ELBOW,9/16"-18 ORFS

ASSY, Incl 8 (Qty 2), 12 (Qty 1)

2шт.

12

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 11

2шт.

13

87310

NUT,Jam, 9/16"-18, G2

2шт.
