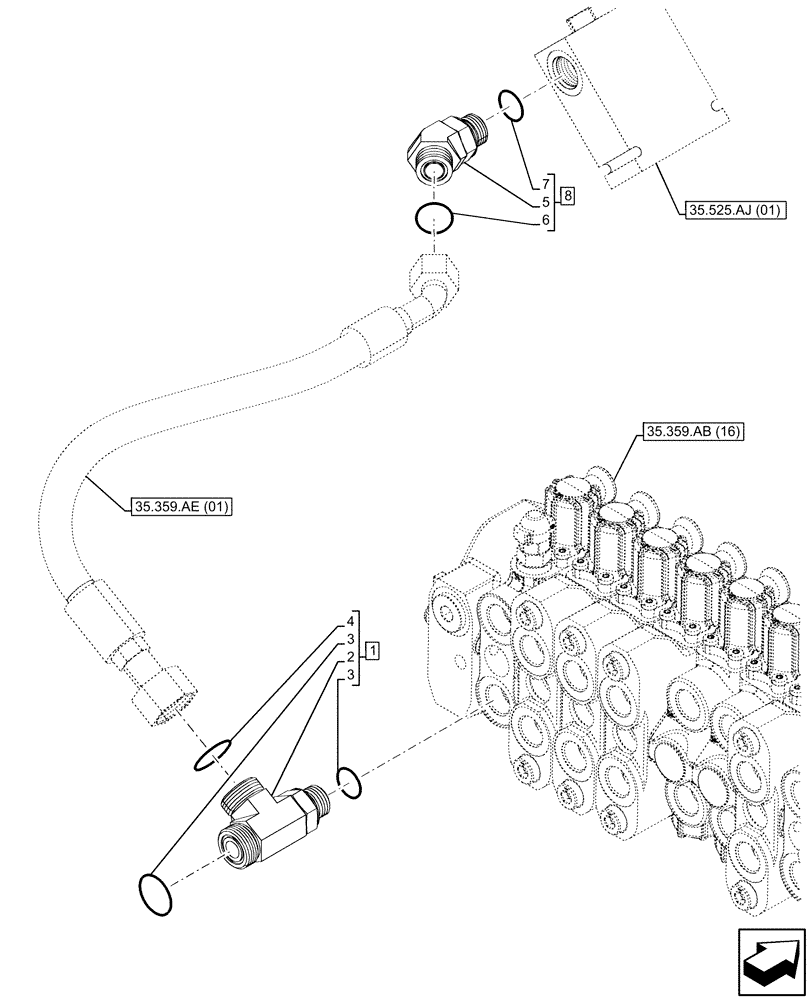

Запчасти Case 580SN (35.525.AA[21]) - VAR - 423083 - AUXILIARY HYDRAULIC, LINES (35) - HYDRAULIC SYSTEMS

1

87493307

RUN TEE

ASSY, Incl 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Tee, Incl in 1

1шт.

3

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

4

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

5

NSS

NOT SOLD SEPARAT

45° Elbow, Incl in 8

1шт.

6

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

201-317

ELBOW,45 Degree, 1 3/16"-12 x 1 1/16"-12. Adj, ORFS

ASSY, Incl 5 - 7

1шт.
