(35.525.AA[14]) - VAR - 423084 - AUXILIARY HYDRAULIC, LINES

Запчасти Case 580SN (35.525.AA[14]) - VAR - 423084 - AUXILIARY HYDRAULIC, LINES (35) - HYDRAULIC SYSTEMS

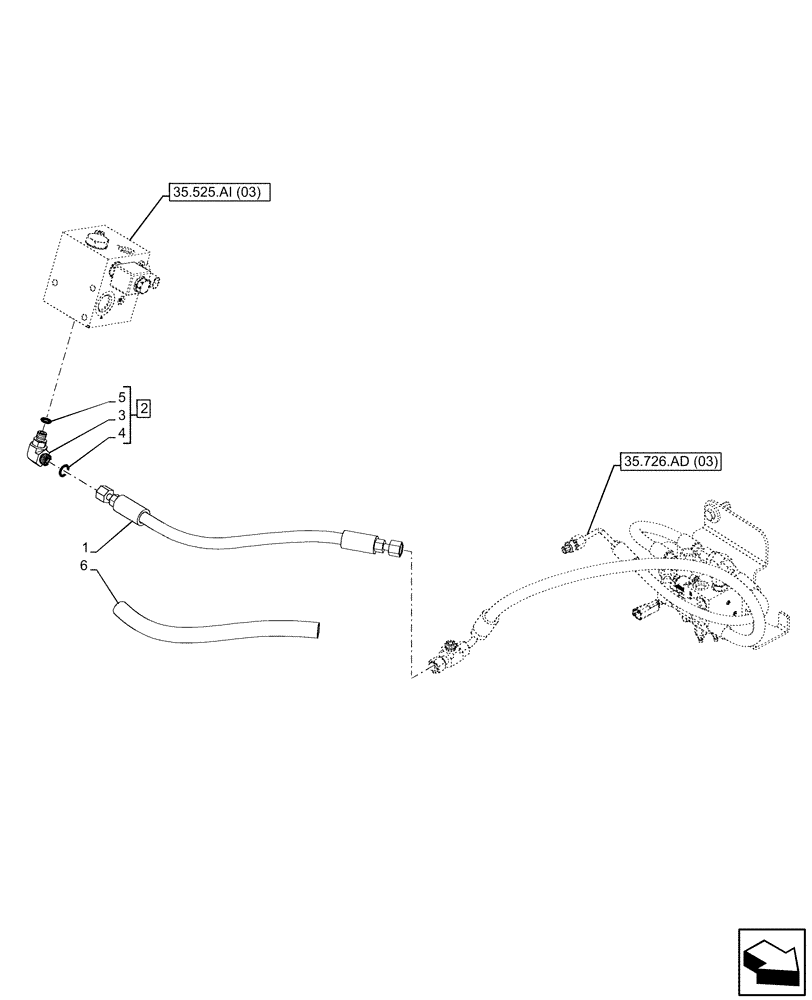

Схема запчастей Case 580SN - (35.525.AA[14]) - VAR - 423084 - AUXILIARY HYDRAULIC, LINES (35) - HYDRAULIC SYSTEMS
35.726.ad (03)
5
2
1
6
4
3
35.525.ai (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84523981

HYDRAULIC HOSE,9.53mm ID x 550mm L, SAE 100R16

1шт.

2

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

ASSY , Incl 4, 7, 8

1шт.

3

NSS

NOT SOLD SEPARAT

Elbow, Incl in 2

2шт.

4

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

5

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

143219A1

HOSE PROTECTION,19mm ID x 24mm OD x 450mm L

1шт.

Выбрано товаров: 6
