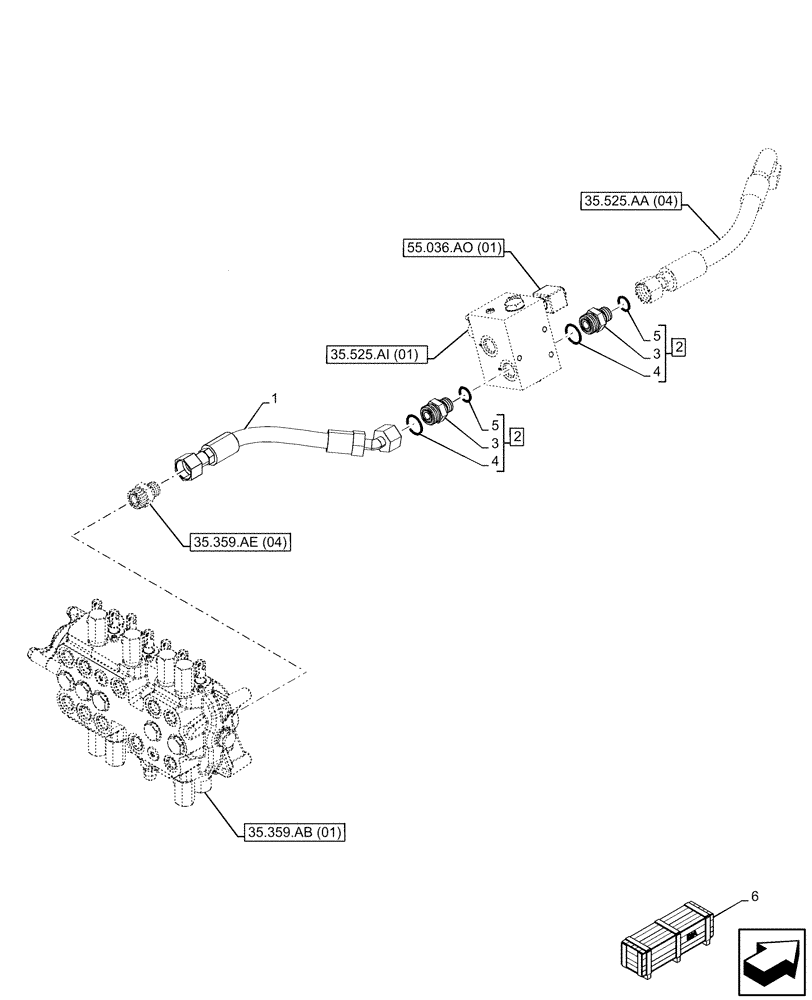

Запчасти Case 580SN (35.525.AA[01]) - VAR - 423083, 747661 - AUXILIARY HYDRAULIC, VALVE, LINES (35) - HYDRAULIC SYSTEMS

1

84283270

HOSE ASSY.,19mm ID x 415mm L

Aux Valve to Backhoe Valve

1шт.

2

87303844

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-1/16" - 12 ORB

ASSY, Incl in 3 (Qty 1), 4 (Qty 1) ,5 (Qty 1)

2шт.

3

NSS

NOT SOLD SEPARAT

Connector Incl in 2

2шт.

4

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

5

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

6

47674139

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Mechanical Control, Extendable Dipper, Incl 1, 2

1шт.

Valid for 580N EP Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

84546982

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Mechanical Control, Extendable Dipper, Incl 1, 2

1шт.

Valid for 580N, 580SN, 580SN WT Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

47674141

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Mechanical Control, Standard Dipper, Incl 1, 2

1шт.

Valid for 580N EP Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

84546983

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Mechanical Control, Standard Dipper, Incl 1, 2

1шт.

Valid for 590SN Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

84546985

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Mechanical Control, Extendable Dipper, Incl 1, 2

1шт.

Valid for 590SN Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
