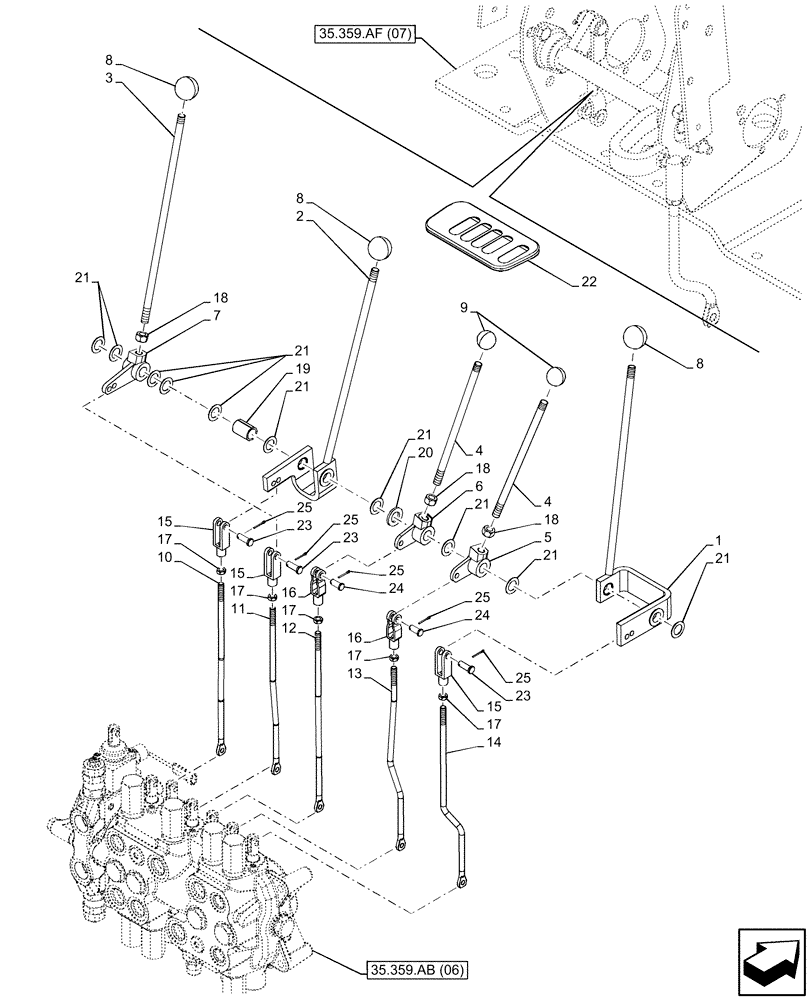

Запчасти Case 580SN (35.359.AF[08]) - BACKHOE CONTROL VALVE, 8-SPOOL, MECHANICAL CONTROLS (35) - HYDRAULIC SYSTEMS

1

136267A1

LEVER

Boom

1шт.

2

136269A1

LEVER

Bucket

1шт.

3

136263A1

ROD,12.7mm OD x 407mm L

1шт.

4

136261A1

THREADED ROD,1/2"-20 UNF x 260mm L

2шт.

5

D150434

CRANK LEVER

LH Stabilizer

1шт.

6

D150435

CRANK LEVER

RH Stabilizer

1шт.

7

D150397

CRANK LEVER

Dipper

1шт.

8

L54563

KNOB

3шт.

9

D59912

KNOB

2шт.

10

87422249

THREADED ROD,9.53mm D x 368mm L

1шт.

11

87422247

THREADED ROD,9.53mm D x 352mm L

1шт.

12

87422245

THREADED ROD,9.53mm D x 368mm L

1шт.

13

87422243

THREADED ROD,9.53mm D x 368mm L

1шт.

14

87422241

THREADED ROD,9.53mm D x 363mm L

1шт.

15

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

3шт.

16

D150493

END

2шт.

17

425-156

JAM NUT,Jam, 3/8"-24, G5

5шт.

18

425-118

NUT,1/2"-20, G5

3шт.

19

D150486

SPACER,19.76mm ID x 25.4mm OD x 35mm L

1шт.

20

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

21

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

10шт.

22

D149866

BOOT

1шт.

23

D149288

PIN,8.33mm OD x 30.66mm L

3шт.

24

427-6088

CLEVIS PIN,3/8" x 3/4"

2шт.

25

432-612

COTTER PIN,3/32" x 3/4"

5шт.
