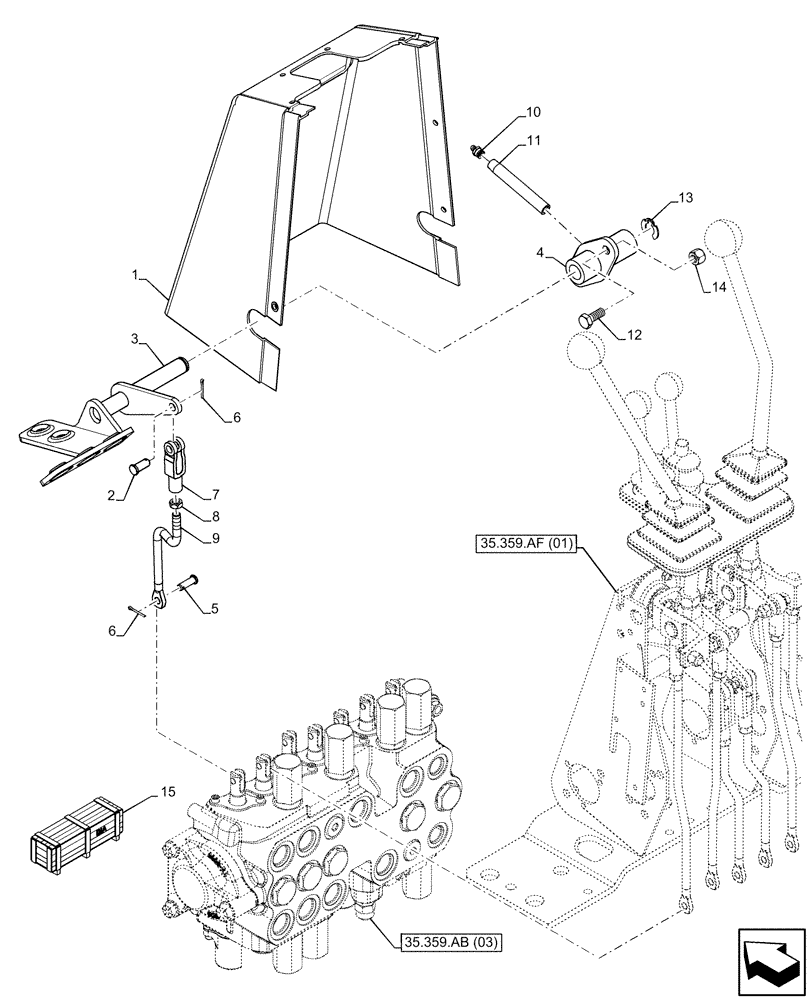

Запчасти Case 580SN (35.359.AF[03]) - BACKHOE CONTROL VALVE, 7-SPOOL, MECHANICAL CONTROLS (35) - HYDRAULIC SYSTEMS

1

390690A1

COVER

Front Backhoe Console 2 Lever

1шт.

2

427-6088

CLEVIS PIN,3/8" x 3/4"

1шт.

3

179029A1

PEDAL

Foot Swing

1шт.

4

126918A1

SUPPORT

1шт.

5

D149287

PIN,7.9mm OD x 26.72mm L

7шт.

6

432-612

COTTER PIN,3/32" x 3/4"

8шт.

7

D134900

CLEVIS,3/8-24"

1шт.

8

425-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

9

87440058

THREADED ROD,9.53mm D x 148mm L

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

11

D150032

TUBE

1шт.

12

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

13

D143416

CIRCLIP,15.09mm ID x 27.81mm OD x 1.57mm Thk

1шт.

14

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

15

47453063

CONSTRUCTION DIA

Convert Foot Swing to 2 Lever Standard Dipper, Incl 1 - 4, 6, 8 - 14

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

15

47520390

CONSTRUCTION DIA

Convert Standard Dipper to Extendable Dipper, Hand Swing Control, Incl 2 - 14

1шт.

Valid for 580N EP, 580N, 580SN, 580SN WT Models Only

1шт.

15

47520393

CONSTRUCTION DIA

Convert Standard Dipper to Extendable Dipper, Hand Swing Control, Incl 2 - 4, 6 - 14

1шт.

Valid for 590SN Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
