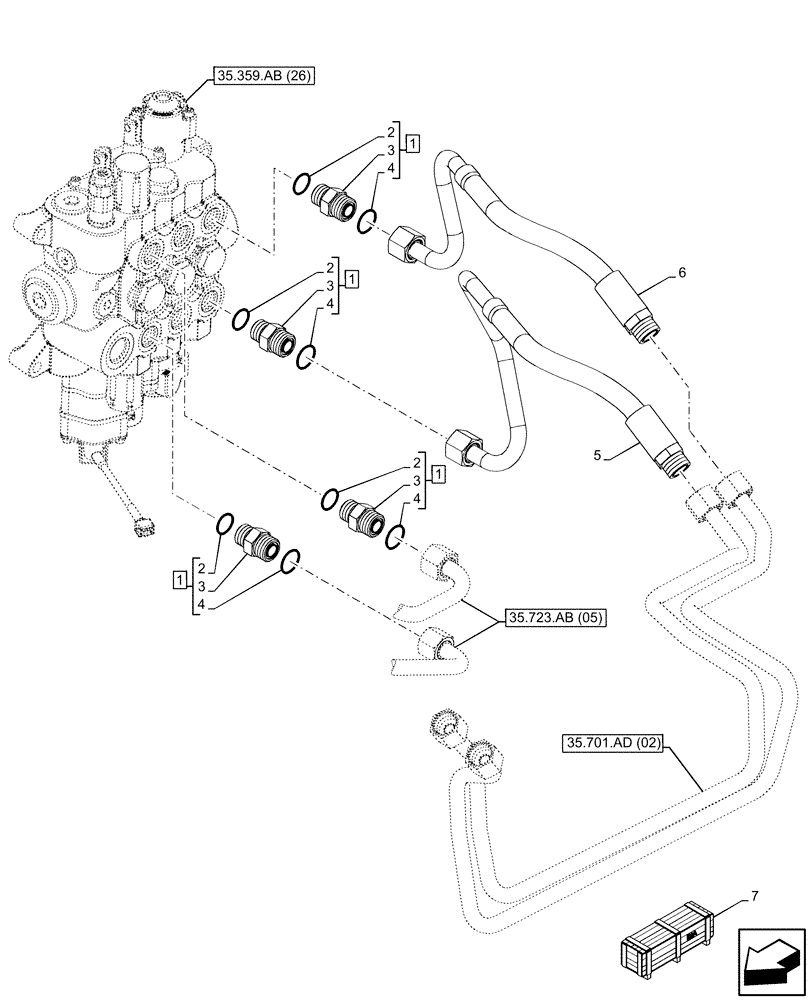

Запчасти Case 580SN (35.359.AE[16]) - VAR - 747776 - LOADER, CONTROL VALVE LINE (35) - HYDRAULIC SYSTEMS

1

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

ASSY, Incl 2 - 4

4шт.

2

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

4шт.

3

NSS

NOT SOLD SEPARAT

Connector, Incl in 1

1шт.

4

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

5

84293158

TUBE

1шт.

6

84293160

TUBE

1шт.

7

47661816

CONSTRUCTION DIA

3 Spool, Mechanical Control, Standard Transmissiom, Incl 1 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

7

47661824

CONSTRUCTION DIA

3 Spool, Mechanical Control, Powershift Transmissiom, Incl 1 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
