Запчасти Case 580SN (35.359.AC[02]) - VAR - 747776, 747864 - AUXILIARY CONTROL VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

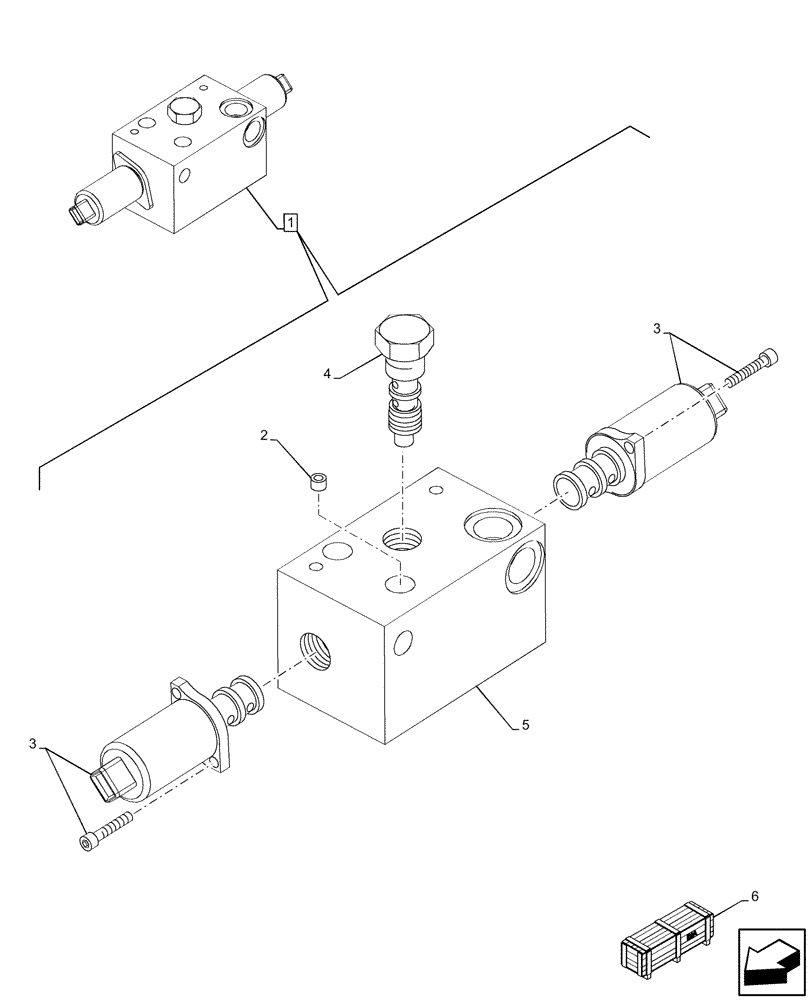

Схема запчастей Case 580SN - (35.359.AC[02]) - VAR - 747776, 747864 - AUXILIARY CONTROL VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS
4
2
5
3
6
1
3

Артикул

Название

Примечание

Количество

1

47765053

CONTROL VALVE

Proportional, 4x1 and 6x1 Clam Bucket

1шт.

2

87311363

ORIFICE,1.8mm ID

1шт.

3

85827993

SOLENOID VALVE

Proportional Pressure Reducing Valve

2шт.

4

47761897

VALVE, PRESSURE CONT

Fixed Reducing

1шт.

5

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

6

47761897

VALVE, PRESSURE CONT

Valve Pressure Reducing, Clam Valve, Incl 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

47501545

CONSTRUCTION DIA

No Auxiliary to Combo, Pilot Control, Standard Dipper, Incl 3

1шт.

Valid for 580N EP, 580N Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

47661834

CONSTRUCTION DIA

No Auxiliary to Combo, Pilot Control, Standard Dipper, Incl 1 - 5

1шт.

Valid for 580N EP, 580N Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

47501543

CONSTRUCTION DIA

No Auxiliary to Combo, Pilot Control, Standard Dipper, Incl 3

1шт.

Valid for 580SN, 580SN WT Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

47501544

CONSTRUCTION DIA

No Auxiliary to Combo, Pilot Control, Standard Dipper, Incl 3

1шт.

Valid for 590SN Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

47661908

CONSTRUCTION DIA

Uni-Auxiliary to Combo, Pilot Control, Standard Dipper, Incl 3

1шт.

Valid for 580SN, 580SN WT, 590SN Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

47661816

CONSTRUCTION DIA

3 Spool, Mechanical Control, Standard Transmission, Incl 1 - 5

1шт.

Valid for 580SN, 580SN WT, 590SN Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

47661824

CONSTRUCTION DIA

3 Spool, Mechanical Control, Powershift Transmission, Incl 1 - 5

1шт.

Valid for 580SN, 580SN WT, 590SN Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

47661818

CONSTRUCTION DIA

3 Spool,Pilot Control, Standard Transmission, Incl 1 - 5

1шт.

Valid for 580SN, 580SN WT, 590SN Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

47661814

CONSTRUCTION DIA

3 Spool, Pilot Control, Powershift Transmission, Incl 1 - 5

1шт.

Valid for 580N Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

47661785

CONSTRUCTION DIA

3 Spool, Mechanical Control, Powershift Transmission, Incl 1 - 5

1шт.

Valid for 580N Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

47788201

CONSTRUCTION DIA

3 Spool, Mechanical Control, Powershift Transmission, Incl 1 - 5

1шт.

Valid for 580SN, 580SN WT, 590SN Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

47677200

CONSTRUCTION DIA

3 Spool, Mechanical Control, Incl 1 - 5

1шт.

Valid for 580N EP, 580N Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

47677937

CONSTRUCTION DIA

3 Spool, Pilot Control, Incl 1 - 5

1шт.

Valid for 580N EP, 580N Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 46
