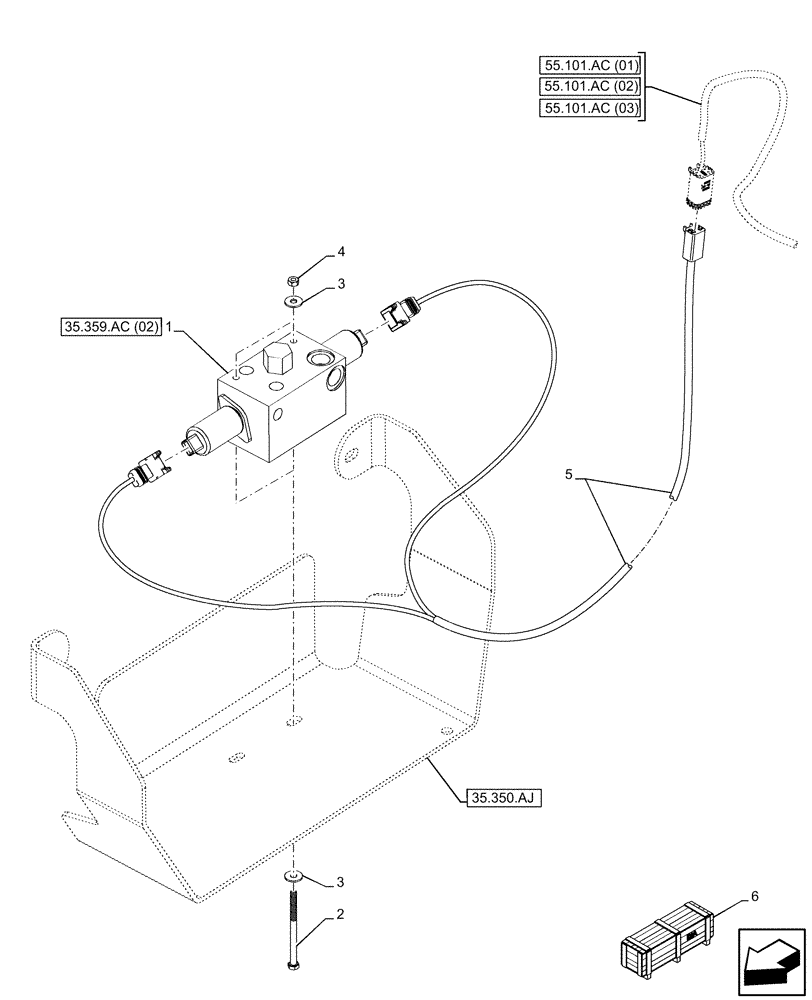

Запчасти Case 580SN (35.359.AC[01]) - VAR - 747776, 747864 - AUXILIARY CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

47765053

CONTROL VALVE

Proportional, 4x1 and 6x1 Clam Bucket

1шт.

2

814-6090

BOLT,Hex, M6 x 1 x 90mm, Cl 8.8

2шт.

3

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

4шт.

4

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

5

87651975

WIRE HARNESS

1шт.

6

47661814

CONSTRUCTION DIA

3 Spool, Mechanical Control, Powershift Transmission, Incl 1 - 5

1шт.

Valid for 580N Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

47661785

CONSTRUCTION DIA

3 Spool, Mechanical Control, Powershift Transmission, Incl 1 - 5

1шт.

Valid for 580N Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

47788201

CONSTRUCTION DIA

3 Spool, Mechanical Control, Powershift Transmission, Incl 1 - 5

1шт.

Valid for 580SN, 580SN WT, 590SN Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

47677937

CONSTRUCTION DIA

3 Spool, Pilot Control, Incl 1 - 5

1шт.

Valid for 580N EP, 580N Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

47661816

CONSTRUCTION DIA

3 Spool, Mechanical Control, Standard Transmission, Incl 1 - 5

1шт.

Valid for 580SN, 580SN WT, 590SN Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

47661824

CONSTRUCTION DIA

3 Spool, Mechanical Control, Powershift Transmission, Incl 1 - 5

1шт.

Valid for 580SN, 580SN WT, 590SN Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

47661818

CONSTRUCTION DIA

3 Spool, Pilot Control, Standard Transmission, Incl 1 - 5

1шт.

Valid for 580SN, 580SN WT, 590SN Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
