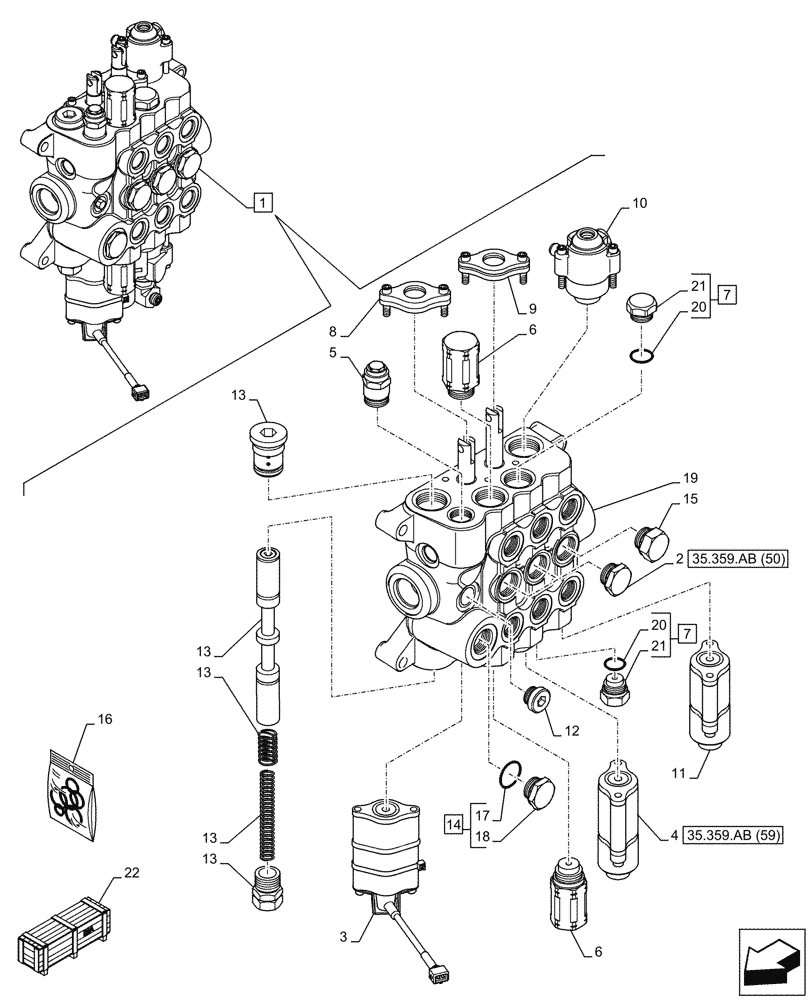

Запчасти Case 580SN (35.359.AB[46]) - VAR - 747776 - LOADER, CONTROL VALVE, MECHANICAL, 3-SPOOL (35) - HYDRAULIC SYSTEMS

1

84218283

VALVE

Loader 3 Spool With Full Flow Priority, ASSY, Incl 2 - 21

1шт.

2

87426238

VALVE, CHECK

ASSY

2шт.

3

84296814

KIT

RTD End Group

1шт.

4

87426227

DETENT

ASSY

1шт.

5

84296864

VALVE PRESSURE RELIE,7/8" - 14

1шт.

6

84296801

VALVE PRESSURE RELIE,1-1/4" - 12

2шт.

7

81868381

CHECK VALVE,1-1/16" - 12

ASSY, Incl in 20, 21

2шт.

8

84315193

SEAL

1шт.

9

84327674

KIT

Seal Plate

1шт.

10

87757931

END

1шт.

11

87757932

END

1шт.

12

86625138

PLUG,7/18" - 14

1шт.

13

84296863

KIT

Mechanical Priority End Group

1шт.

14

163410

PLUG,1-1/16" - 12 ORB

ASSY, Incl 17, 18

1шт.

15

84328445

CHECK VALVE

1шт.

16

84296788

SEAL KIT

1шт.

17

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

18

NSS

NOT SOLD SEPARAT

1шт.

19

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

20

87455580

O-RING KIT

Incl in 7

2шт.

21

NSS

NOT SOLD SEPARAT

Incl in 7

2шт.

22

47661816

CONSTRUCTION DIA

3 Spool, Mechanical Control, Standard Transmission, Incl 1 - 19

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

22

47661824

CONSTRUCTION DIA

3 Spool, Mechanical Control, Powershift Transmission, Incl 1 - 19

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
