(35.359.AB[43]) - VAR - 747864 - LOADER, CONTROL VALVE, PILOT CONTROLS, 3-SPOOL, CLAM, VALVE SECTION

Запчасти Case 580SN (35.359.AB[43]) - VAR - 747864 - LOADER, CONTROL VALVE, PILOT CONTROLS, 3-SPOOL, CLAM, VALVE SECTION (35) - HYDRAULIC SYSTEMS

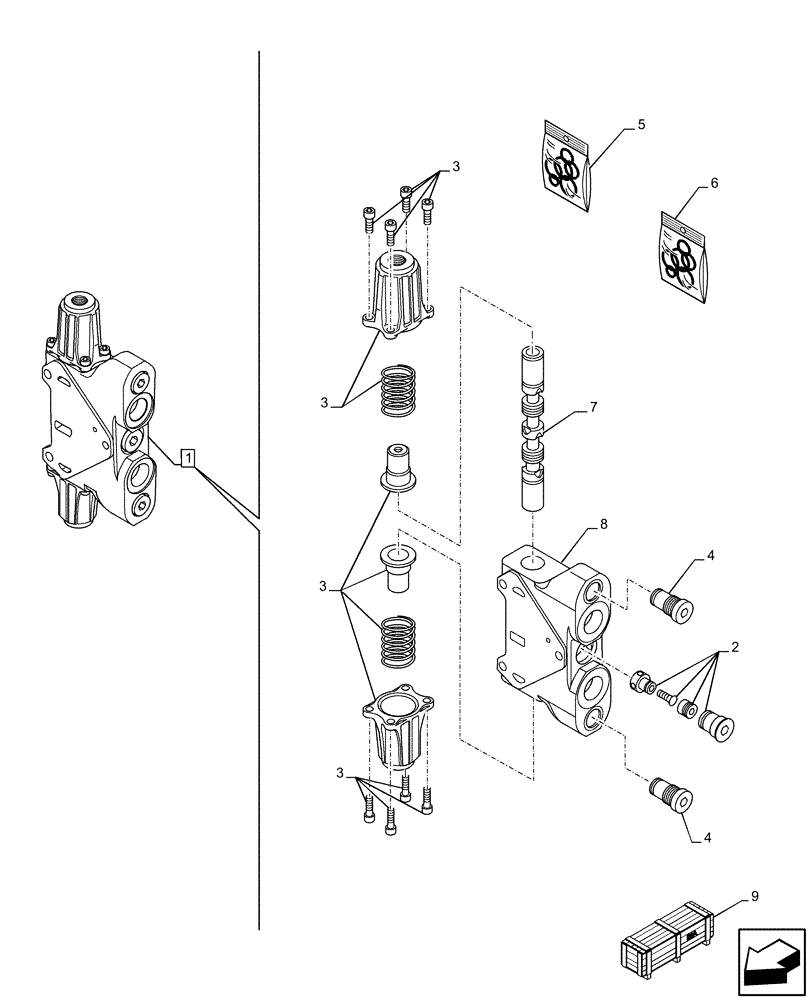

Схема запчастей Case 580SN - (35.359.AB[43]) - VAR - 747864 - LOADER, CONTROL VALVE, PILOT CONTROLS, 3-SPOOL, CLAM, VALVE SECTION (35) - HYDRAULIC SYSTEMS
3
3
4
6
1
3
2
4
3
7
8
9
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84295102

HYD VALVE SECTION

ASSY, Incl 2 - 8

1шт.

2

47422242

COMPENSATOR

1шт.

3

87346914

KIT

1шт.

4

84232746

PLUG

2шт.

5

85825473

SEAL KIT

1шт.

6

87617657

O-RING KIT

1шт.

7

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

9

84484676

SERVICE KIT

3 Spool Valve Section, Tie Rods, Incl 1 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
