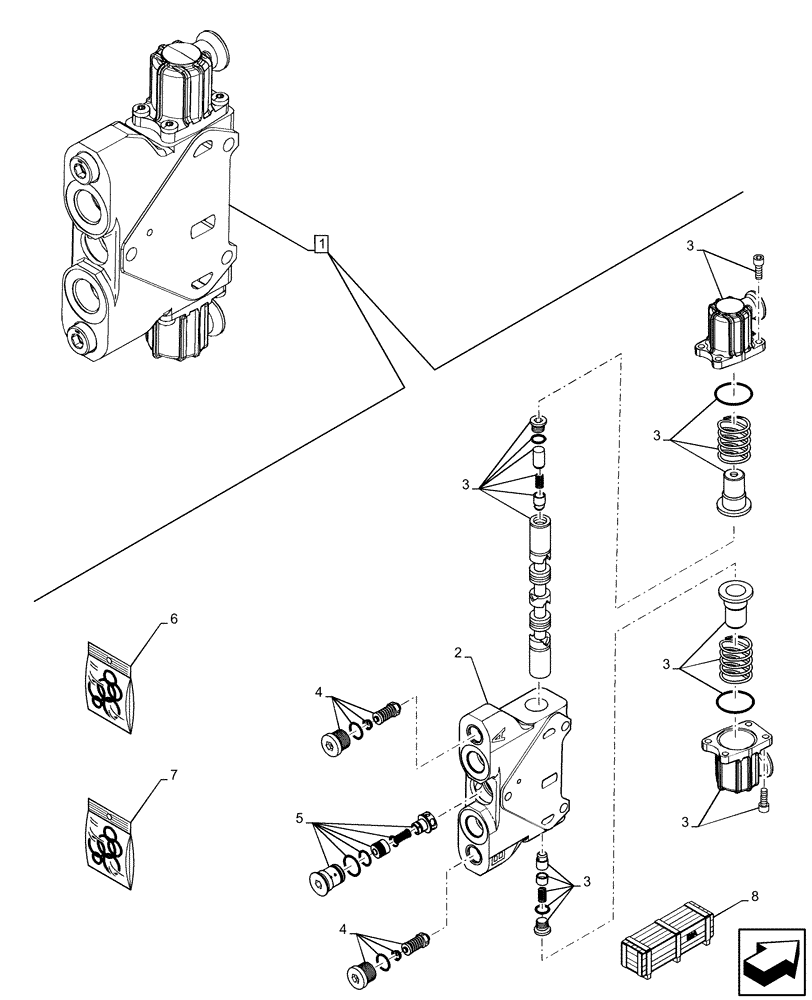

Запчасти Case 580SN (35.359.AB[21]) - BACKHOE CONTROL VALVE, DIPPER SECTION (35) - HYDRAULIC SYSTEMS

1

84278710

HYD VALVE SECTION

Dipper, ASSY, Incl 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

1шт.

3

85826344

KIT,Operation

1шт.

4

84295049

VALVE PRESSURE RELIE,283 Bar

283 bar

2шт.

5

47422242

COMPENSATOR

1шт.

6

85825473

SEAL KIT

1шт.

7

87617657

O-RING KIT

1шт.

8

47593980

CONSTRUCTION DIA

Dipper Oscillation, Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
