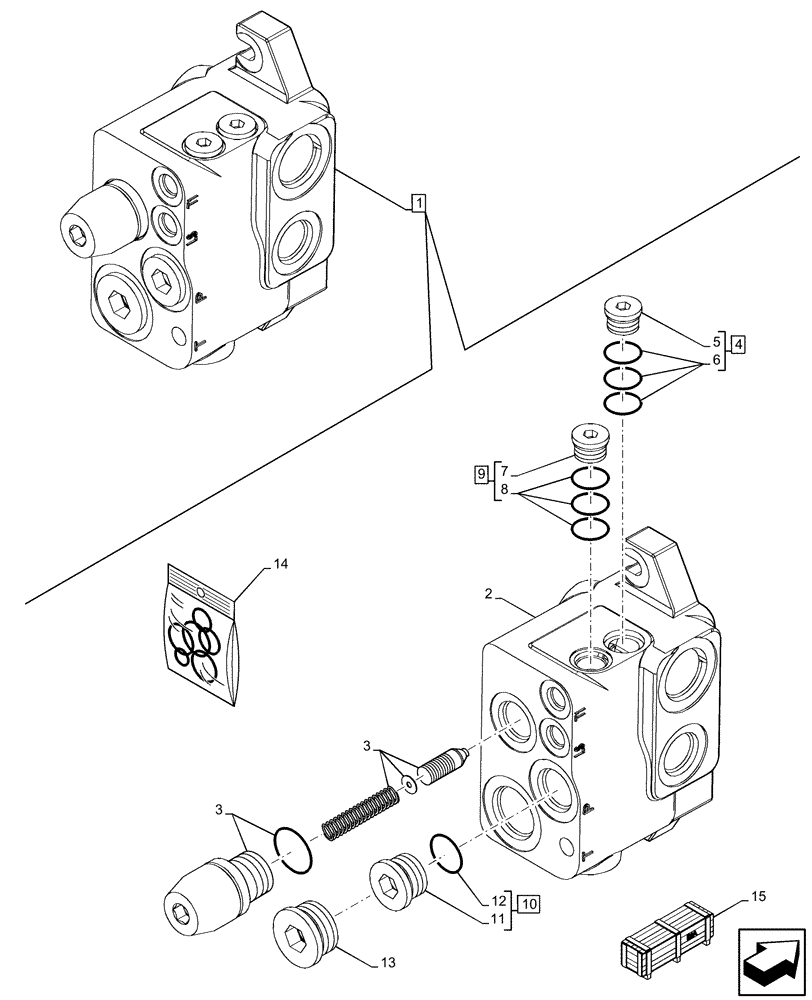

Запчасти Case 580SN (35.359.AB[17]) - BACKHOE CONTROL VALVE, INLET SECTION (35) - HYDRAULIC SYSTEMS

1

84278712

HYD VALVE SECTION

ASSY, Inlet, Incl 2 - 14

1шт.

2

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

1шт.

3

84295095

KIT

1шт.

4

87752046

PLUG

ASSY, Incl 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

Plug, Incl in 4

1шт.

6

85821235

SEAL KIT

1шт.

7

NSS

NOT SOLD SEPARAT

Plug, Incl in 9

1шт.

8

85821236

SEAL KIT

1шт.

9

87752047

PLUG

ASSY, Incl 7, 8

1шт.

10

9841223

PLUG,1-1/16" - 12 ORB

ASSY, Incl 11, 12

1шт.

11

NSS

NOT SOLD SEPARAT

Plug, Incl in 10

1шт.

12

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

13

87363628

PLUG,1 - 5/16" - 12

1шт.

14

85825477

SEAL KIT

1шт.

15

47593980

CONSTRUCTION DIA

Dipper Oscillation, Incl 1 - 14

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
