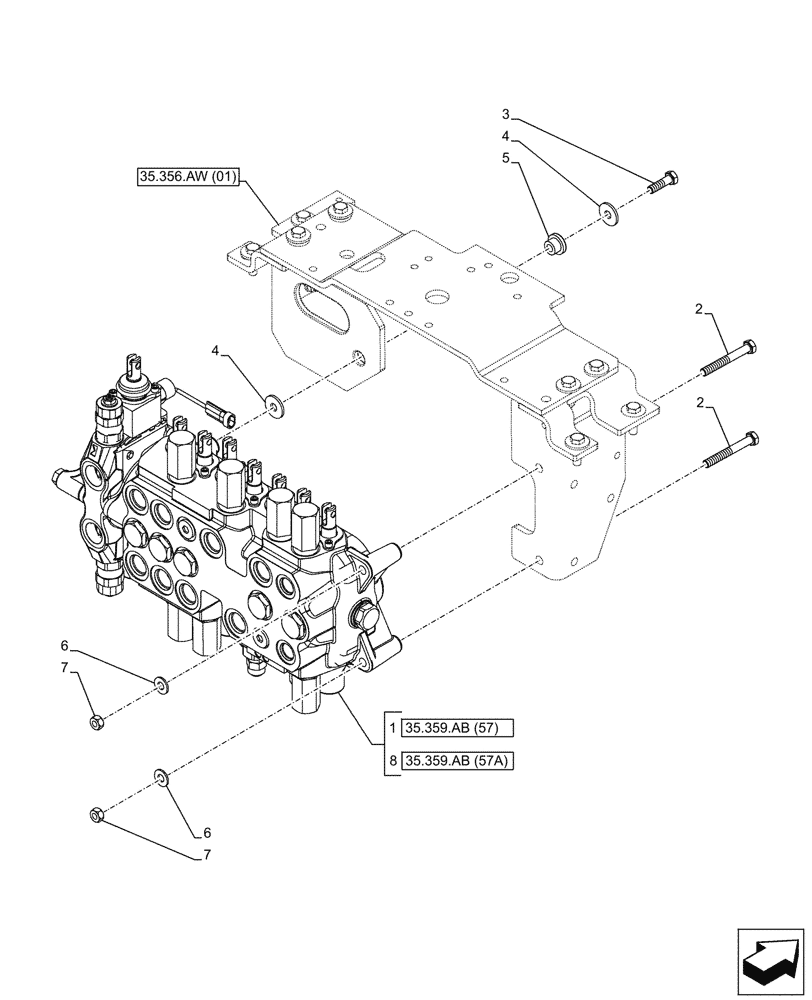

Запчасти Case 580SN (35.359.AB[07]) - BACKHOE CONTROL VALVE, 8-SPOOL, MOUNTING PARTS, EXTENDABLE DIPPER, W/ TWO LEVER CONTROLS (35) - HYDRAULIC SYSTEMS

1

84273250

VALVE

Backhoe Valve 8 Spool Hand Swing, ASSY, Years: -10-JUL-15

1шт.

2

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

3

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

4

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

2шт.

5

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

1шт.

6

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

7

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

8

47578532

VALVE

Backhoe Valve 8 Spool Hand Swing, ASSY, Start Year: 11-JUL-15

1шт.
