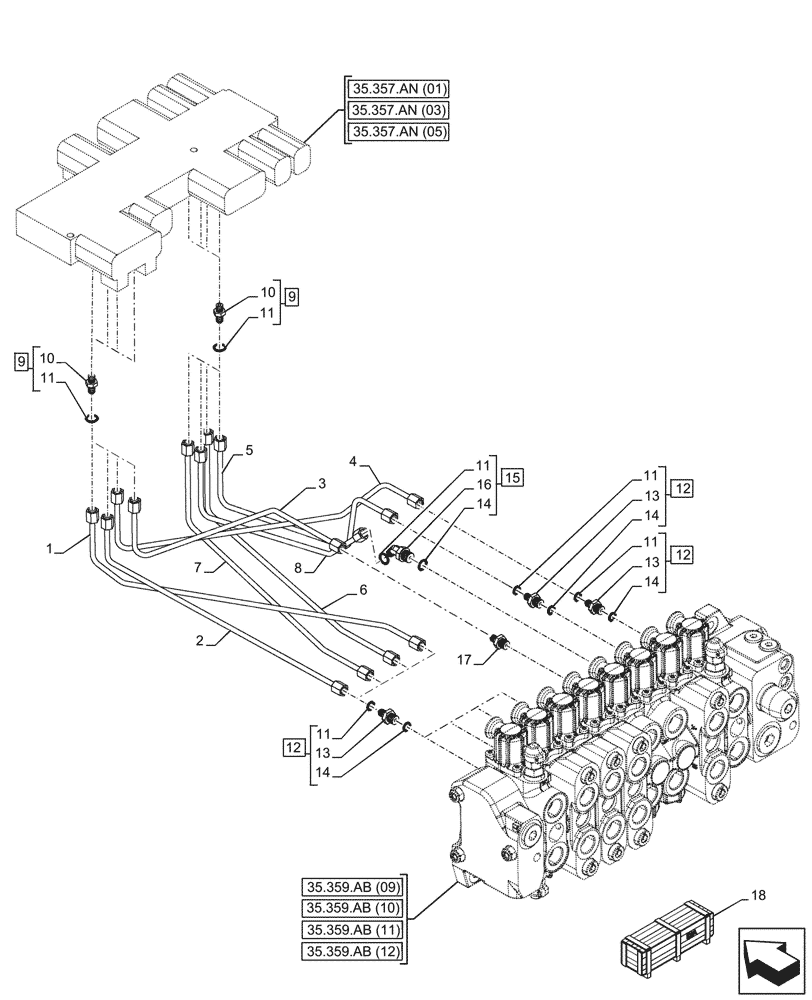

Запчасти Case 580SN (35.357.AO[02]) - VAR - 423078 - BACKHOE ARM, PILOT CONTROLS, LINE (35) - HYDRAULIC SYSTEMS

1

87439213

HYD TUBE

Selector A3 to Boom B

1шт.

2

87437621

TUBE,.25" OD

Selector A1 to Dipper B

1шт.

3

87437623

TUBE,.25" OD

Selector A2 to Dipper A

1шт.

4

87439215

HYD TUBE

Selector A4 to Boom A

1шт.

5

87437627

HYD TUBE

Reducing Valve to LH Stabilizer A

1шт.

6

87437625

HYD TUBE

Reducing Valve to LH Stabilizer B

1шт.

7

87437629

HYD TUBE

Reducing Valve to RH Stabilizer B

1шт.

8

87445557

HYD TUBE

Reducing Valve to RH Stabilizer A

1шт.

9

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ASSY, Incl 10 (Qty 1), 11 (Qty 1)

8шт.

10

NSS

NOT SOLD SEPARAT

Connector, Incl in 9

8шт.

11

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

15шт.

12

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

ASSY, Incl 11 (Qty 1), 13 (Qty 1), 14 (Qty 1)

6шт.

13

NSS

NOT SOLD SEPARAT

Connector, Incl in 12

6шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

7шт.

15

218-5365

ELBOW,45 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

ASSY, Incl 11 (Qty 1), 14 (Qty 1), 16

1шт.

16

NSS

NOT SOLD SEPARAT

45° Elbow, Incl in 15

1шт.

17

87423401

FITTING,1/4" JIC x 3/8" ORB

Special Orifice Pilot

1шт.

18

47593980

CONSTRUCTION DIA

Dipper Oscillation, Incl 1 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
