(35.300.BE[01]) - HYDRAULIC OIL RESERVOIR, BREATHER

Запчасти Case 580SN (35.300.BE[01]) - HYDRAULIC OIL RESERVOIR, BREATHER (35) - HYDRAULIC SYSTEMS

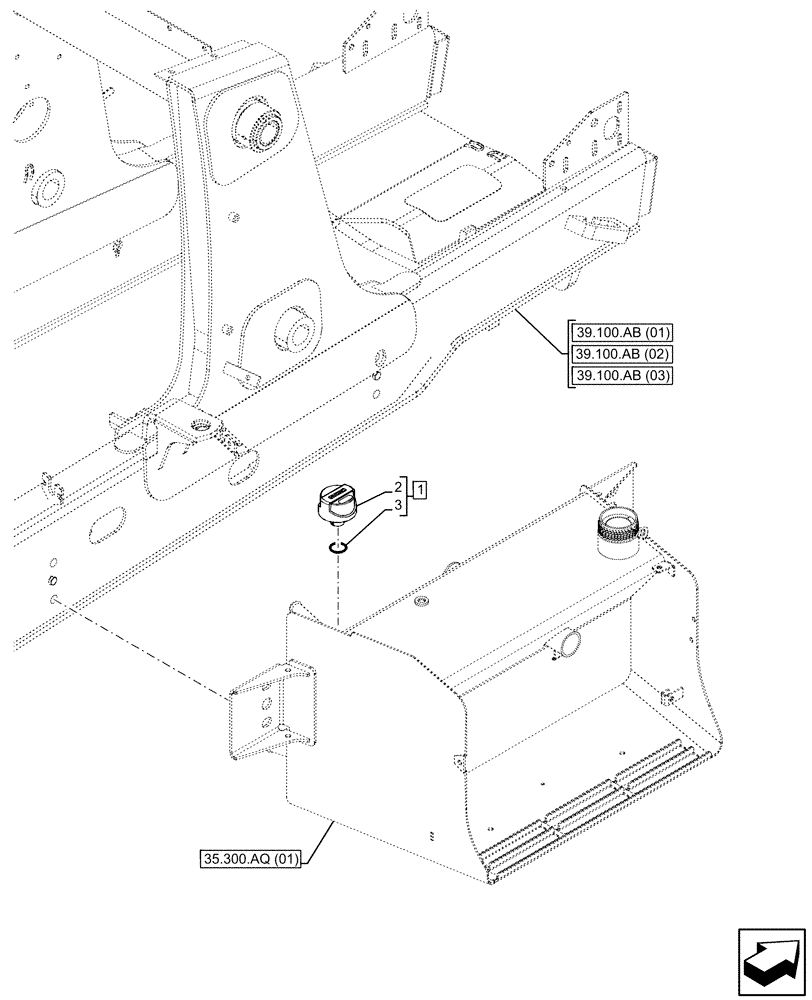

Схема запчастей Case 580SN - (35.300.BE[01]) - HYDRAULIC OIL RESERVOIR, BREATHER (35) - HYDRAULIC SYSTEMS
35.300.aq (01)
3
2
1
39.100.ab (03)
39.100.ab (01)
39.100.ab (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84329587

BREATHER

Hydraulic Tank, ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Breather, Incl in 1

1шт.

3

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.
