(35.300.BC[01]) - VAR - 423000, 423001, 442082, 747853, 747854, 747855 - OIL COOLER LINE

Запчасти Case 580SN (35.300.BC[01]) - VAR - 423000, 423001, 442082, 747853, 747854, 747855 - OIL COOLER LINE (35) - HYDRAULIC SYSTEMS

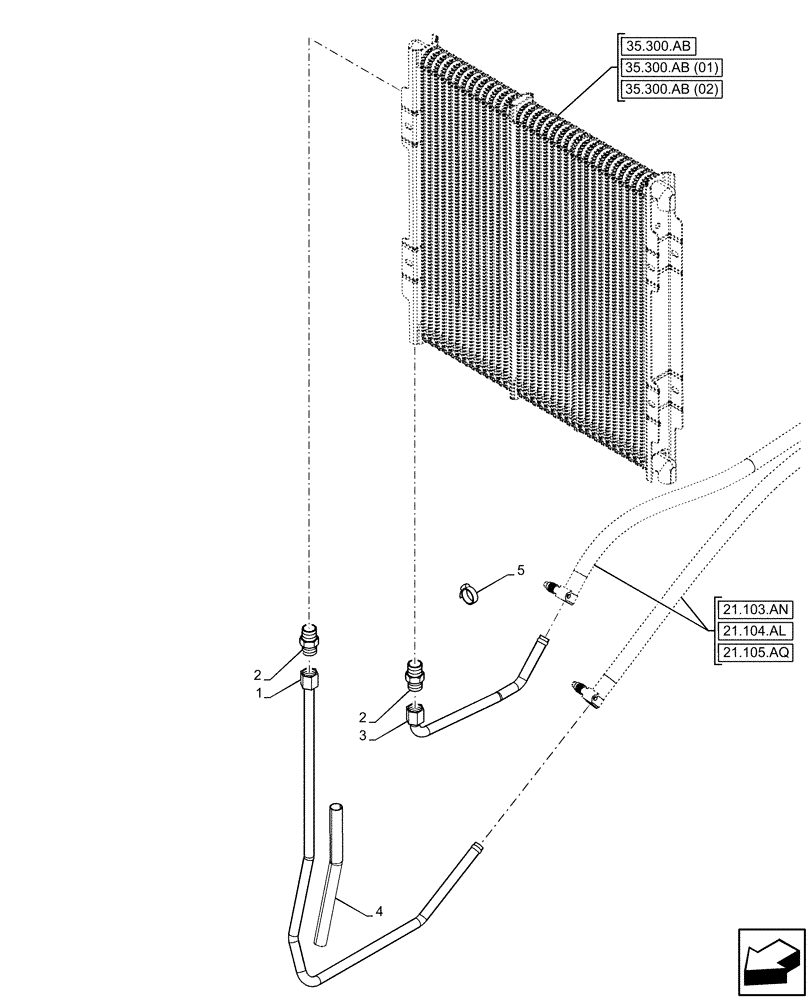

Схема запчастей Case 580SN - (35.300.BC[01]) - VAR - 423000, 423001, 442082, 747853, 747854, 747855 - OIL COOLER LINE (35) - HYDRAULIC SYSTEMS
21.103.an
2
1
4
3
5
2
35.300.ab (01)
35.300.ab (02)
35.300.ab
21.104.al
21.105.aq
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47428709

TUBE

Oil Cooler to Transmission, Upper, RH

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

2шт.

3

47428710

TUBE

Transmission to Oil Cooler, Lower, RH

1шт.

4

87311219

HOSE PROTECTION,16.80 mm ID x 250.00 mm

1шт.

5

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

1шт.
