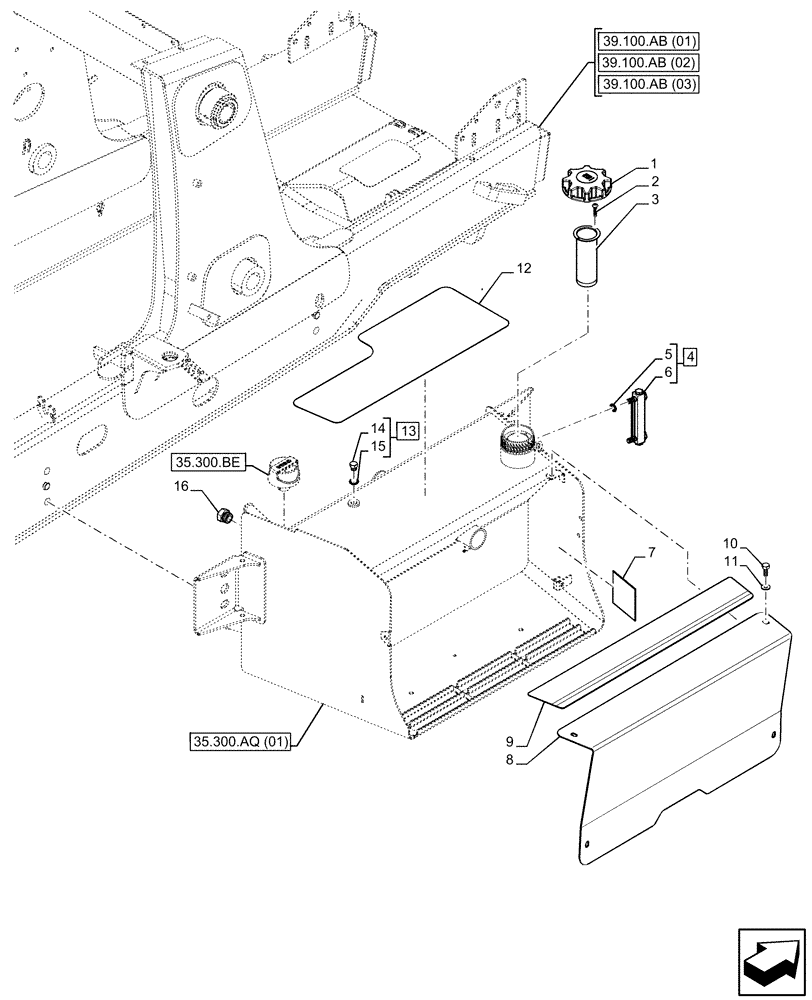

Запчасти Case 580SN (35.300.AQ[04]) - HYDRAULIC OIL RESERVOIR (35) - HYDRAULIC SYSTEMS

1

84298013

CAP,128.8mm D

1шт.

2

86625195

SCREW,Pan Head, #6 - 32 x 5/8"

1шт.

3

47713922

FILTER STRAINER

1шт.

4

226456A1

LEVEL GAUGE

1шт.

5

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

9626944шт.

6

NSS

NOT SOLD SEPARAT

Liquid Level Gauge, Incl in 4

1шт.

7

87673270

ADHESIVE STRIP

1шт.

8

84281665

COVER

Power Tan

1шт.

9

87694065

ANTI-SKID STRIP

1шт.

10

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

16043224шт.

11

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

12

47447702

STRIP

1шт.

13

218-5155

PLUG,9/16" - 18 ORB

76349шт.

14

NSS

NOT SOLD SEPARAT

Plug, Incl in 13

1шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9617873шт.

16

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

163410шт.
