(35.300.AN[01]) - OIL FILTER

Запчасти Case 580SN (35.300.AN[01]) - OIL FILTER (35) - HYDRAULIC SYSTEMS

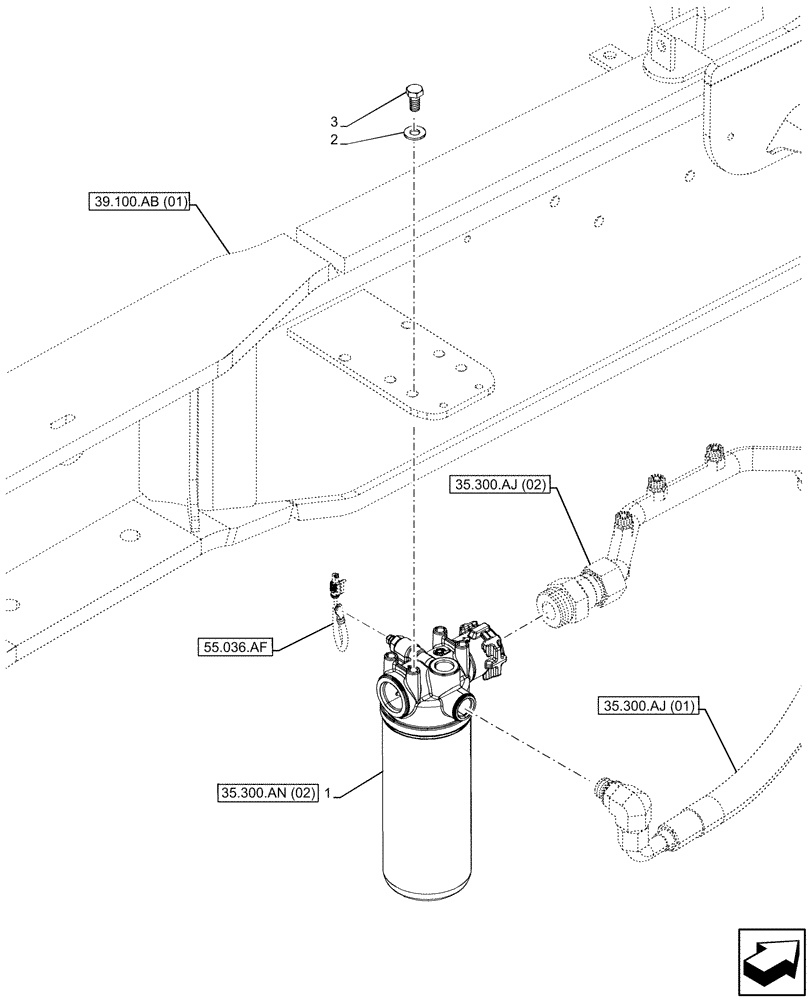

Схема запчастей Case 580SN - (35.300.AN[01]) - OIL FILTER (35) - HYDRAULIC SYSTEMS
39.100.ab (01)
2
1
3
55.036.af
35.300.aj (01)
35.300.an (02)
35.300.aj (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47667947

HYDRAULIC OIL FILTER

1шт.

2

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

3

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.
