(35.300.AJ[02]) - OIL FILTER, LINES

Запчасти Case 580SN (35.300.AJ[02]) - OIL FILTER, LINES (35) - HYDRAULIC SYSTEMS

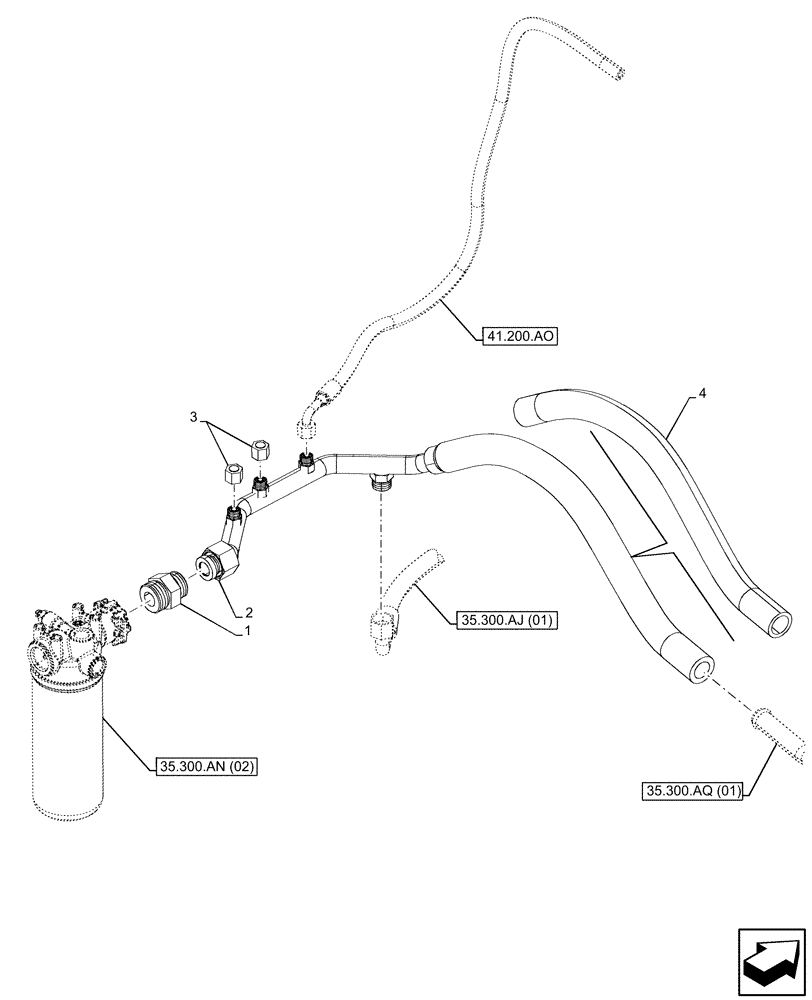

Схема запчастей Case 580SN - (35.300.AJ[02]) - OIL FILTER, LINES (35) - HYDRAULIC SYSTEMS
35.300.aq (01)
3
2
1
4
35.300.aj (01)
35.300.an (02)
41.200.ao
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

9847247

HYD CONNECTOR,1 7/16"-12 ORFS x 1 5/8"-12 ORB

1шт.

2

84514718

HYD TUBE

1шт.

3

87331950

CAP ASSY.,Hex, 11/16"-16

2шт.

4

87656501

HOSE PROTECTION,340.00 mm ID x 540.00 mm

L=540mm

1шт.
