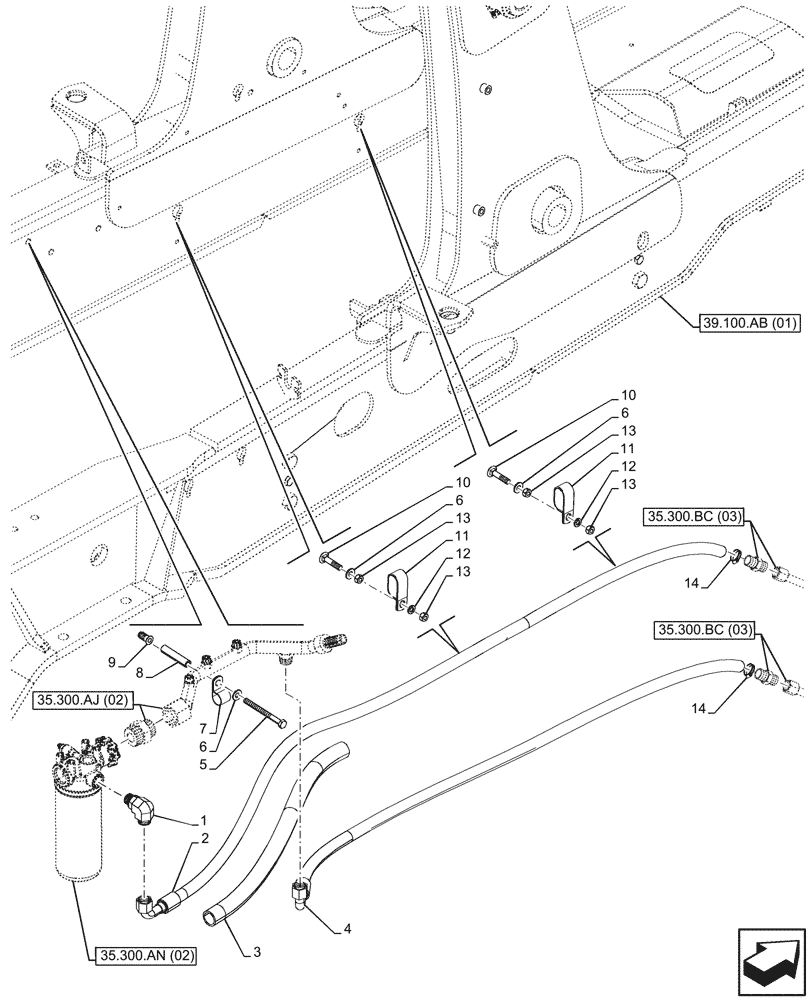

Запчасти Case 580SN (35.300.AJ[01]) - OIL FILTER, LINES (35) - HYDRAULIC SYSTEMS

1

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

1шт.

2

84326090

HOSE ASSY.,16mm ID x 1857mm L

Cooler Supply, L=1857mm

1шт.

3

84329867

HOSE PROTECTION,26.87mm ID x 590mm L

L=590mm

1шт.

4

84514722

HOSE ASSY.,16mm ID x 1345mm L

Cooler Return, L=1345mm

1шт.

5

814-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

1шт.

6

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

3шт.

7

515-25254

CLAMP,1", Insul, 1/2" Bolt

1шт.

8

84256840

SPACER,11mm ID x 15.8mm OD x 74mm L

L=74mm

1шт.

9

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

1шт.

10

711-10050

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 50mm, Cl 8.8

2шт.

11

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

2шт.

12

892-11010

LOCK WASHER,M10

2шт.

13

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

14

84499092

CLAMP,Min 14mm, Max 27mm x 14mm Thk

2шт.
