Запчасти Case 580SN (33.110.AV[01]) - VAR - 423058, 423059 - TRANSMISSION, POWERSHUTTLE, PARKING BRAKE, DISC (33) - BRAKES & CONTROLS

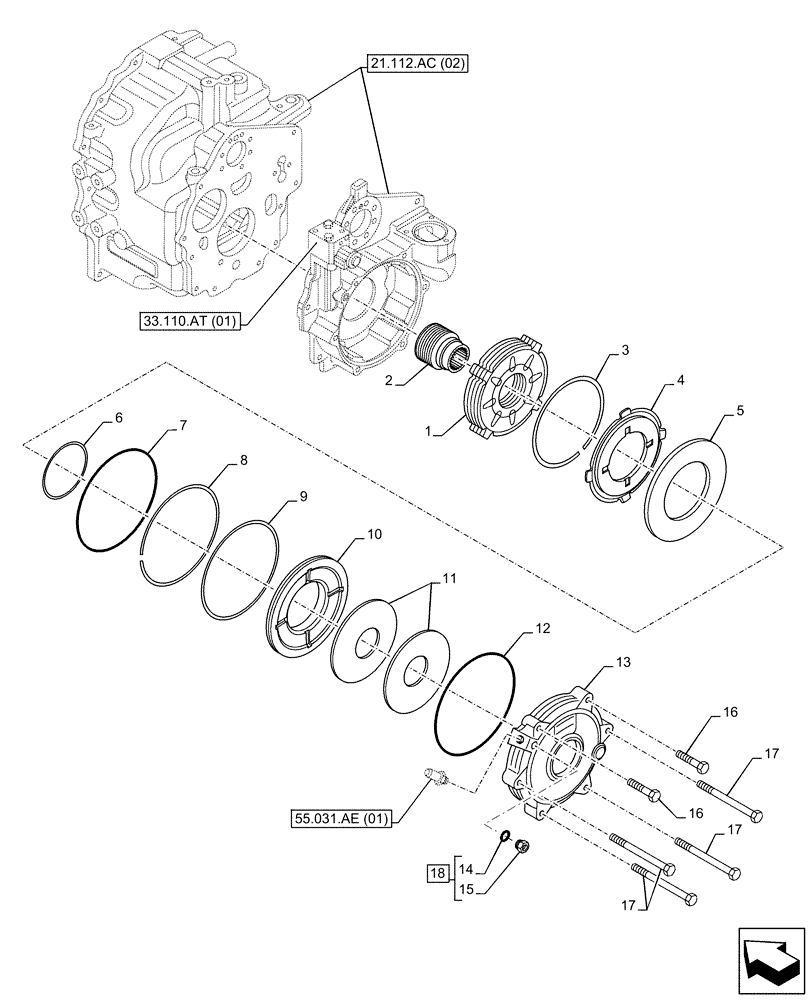

Схема запчастей Case 580SN - (33.110.AV[01]) - VAR - 423058, 423059 - TRANSMISSION, POWERSHUTTLE, PARKING BRAKE, DISC (33) - BRAKES & CONTROLS
21.112.ac (02)
2
4
8
17
13
6
17
16
9
15
5
10
11
3
16
18
14
12
17
1
7
55.031.ae (01)
33.110.at (01)

Артикул

Название

Примечание

Количество

1

87701327

BRAKE PACKAGE

Transmission

1шт.

2

87701328

BUSHING

Transmission, Link

1шт.

3

87701325

SPACER

Transmission

5шт.

4

87701324

BRAKE PLATE

1шт.

5

87701323

RETAINING PLATE

1шт.

6

87701321

SEALING RING

1шт.

7

87701320

O-RING

1шт.

8

87701315

RING

Transmission Stop

1шт.

9

87701318

SEALING RING

1шт.

10

87701317

PISTON

Transmission, Brake

1шт.

11

363485A1

BELLEVILLE WASHER,61mm ID x 170mm OD x 4.6mm Thk

Brake Spring

2шт.

12

87701310

O-RING,0.103" Thk x 8.237" ID, -172, Cl 5, 75 Duro

1шт.

13

87701309

COVER

Powershuttle Transmission, Brake

1шт.

14

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

15

NSS

NOT SOLD SEPARAT

Plug, Incl in 18

1шт.

16

120113

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

2шт.

17

86508574

BOLT,Hex, M10 x 120mm, Cl 8.8

4шт.

18

9625178

PLUG,9/16" - 18 ORB

Transmission Brake Cover, ASSY, Incl 14, 15

1шт.

Выбрано товаров: 18
