(33.110.AT[03]) - VAR - 423062 - TRANSMISSION, POWERSHIFT, PARKING BRAKE, CONTROL VALVE, 4WD

Запчасти Case 580SN (33.110.AT[03]) - VAR - 423062 - TRANSMISSION, POWERSHIFT, PARKING BRAKE, CONTROL VALVE, 4WD (33) - BRAKES & CONTROLS

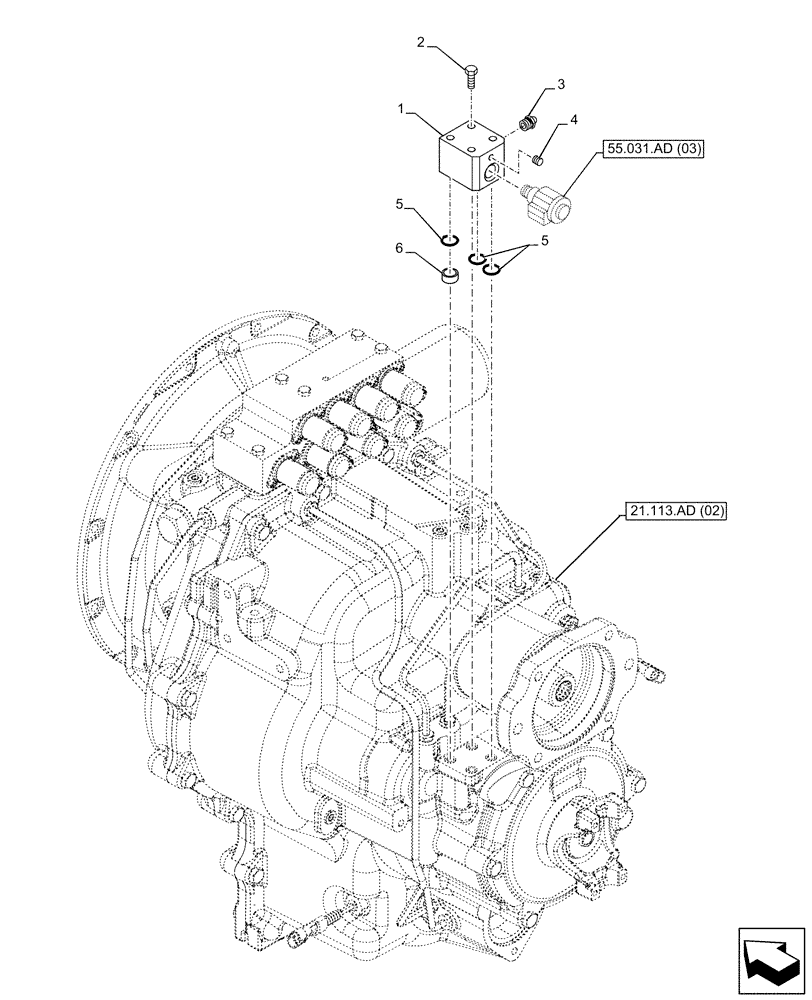

Схема запчастей Case 580SN - (33.110.AT[03]) - VAR - 423062 - TRANSMISSION, POWERSHIFT, PARKING BRAKE, CONTROL VALVE, 4WD (33) - BRAKES & CONTROLS
55.031.ad (03)
6
4
1
5
3
2
5
21.113.ad (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87701330

CONTROL BLOCK

Powershift Transmission, Parking Brake, Hydraulic

1шт.

2

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

2шт.

3

139312A1

PLUG,Expansion, 6mm OD

Expansion, 6mm

2шт.

4

933781R1

LUBE NIPPLE,M10 x 1

Hydraulic Control Block

1шт.

5

277217

SEAL KIT

4шт.

6

87701333

ORIFICE

Transmission

1шт.

Выбрано товаров: 6
