(27.124.AA) - REAR AXLE, SHAFT, BRAKES

Запчасти Case 580SN (27.124.AA) - REAR AXLE, SHAFT, BRAKES (27) - REAR AXLE SYSTEM

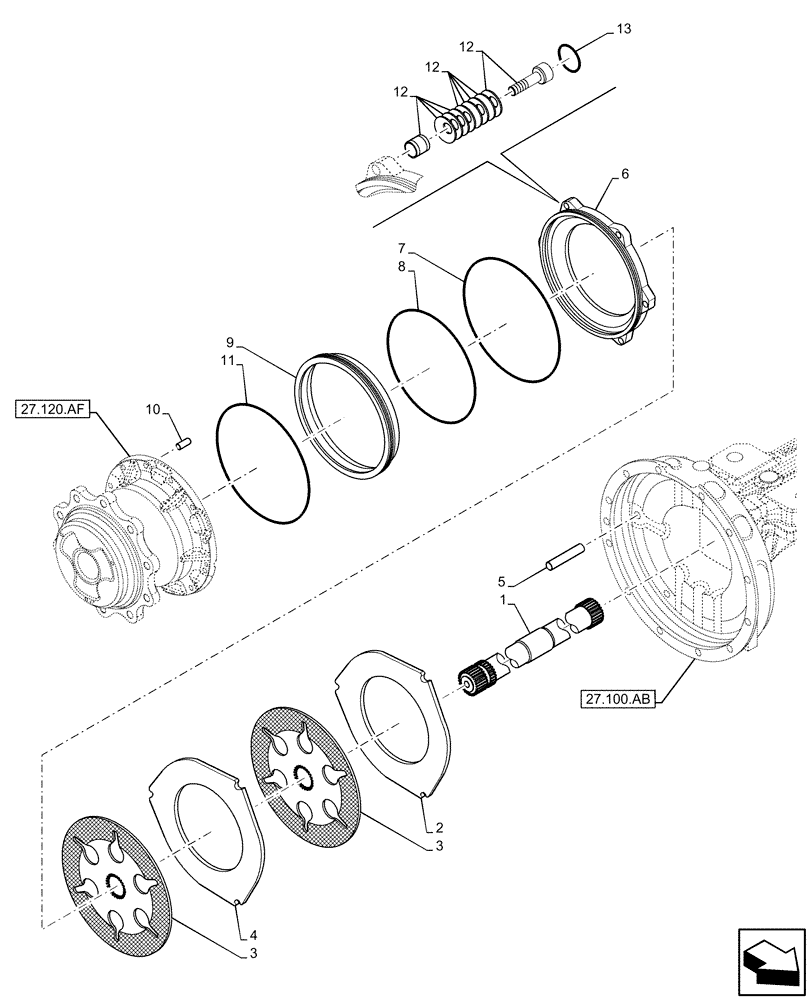

Схема запчастей Case 580SN - (27.124.AA) - REAR AXLE, SHAFT, BRAKES (27) - REAR AXLE SYSTEM
27.100.ab
10
12
12
3
11
12
7
8
3
6
1
9
2
4
5
13
27.120.af
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87708431

SHAFT,734mm / 28.897"

RH (Determine from Seat Facing Radiator)

1шт.

1

87708432

SHAFT,629mm / 24.763"

LH (Determine from Seat Facing Radiator)

1шт.

2

87708433

BRAKE PLATE,5mm Thk

2шт.

3

87708434

BRAKE PLATE

4шт.

4

87708435

BRAKE PLATE,8mm Thk

2шт.

5

139294A1

GUIDE

6шт.

6

87708436

BRAKE CYLINDER

Piston

2шт.

7

87708438

O-RING

2шт.

8

371144A1

O-RING

Piston External

2шт.

9

87708440

PISTON

Brake

2шт.

10

D142890

DOWEL

2шт.

11

371145A1

O-RING

Piston Carrier

2шт.

12

87708441

BRAKE ADJUSTER,0.6mm

Self Adjust KIT 0.6mm

6шт.

13

87708442

CIRCLIP

6шт.
