(27.120.AF) - REAR AXLE, FINAL DRIVE, PLANETARY GEAR

Запчасти Case 580SN (27.120.AF) - REAR AXLE, FINAL DRIVE, PLANETARY GEAR (27) - REAR AXLE SYSTEM

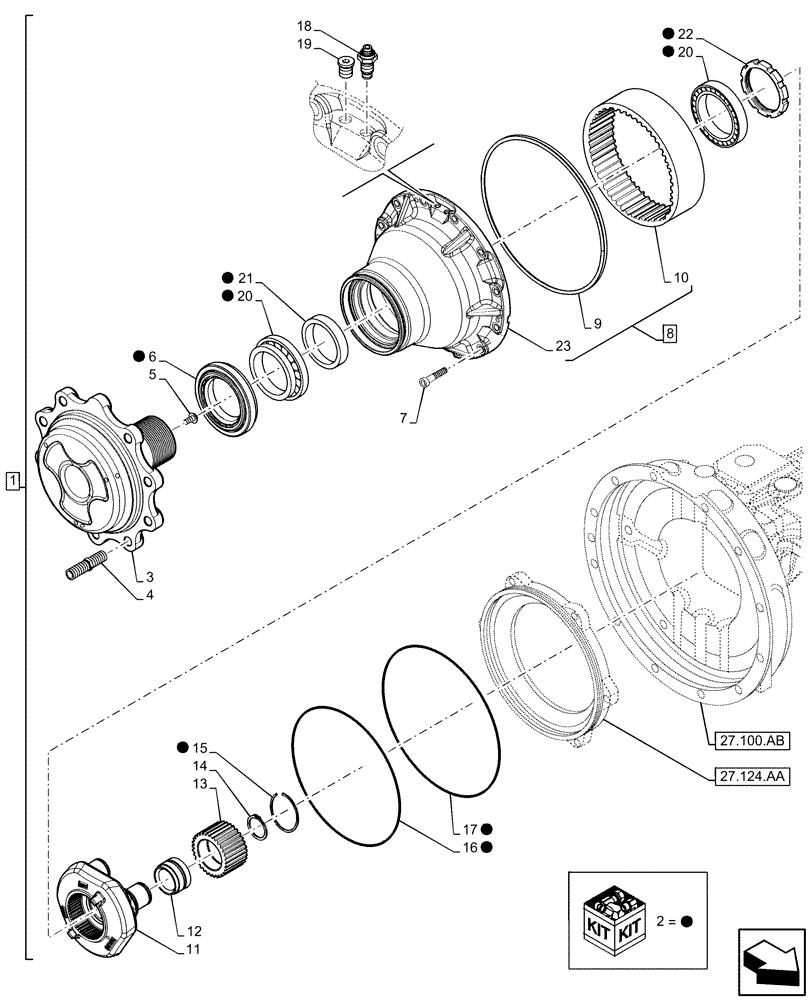

Схема запчастей Case 580SN - (27.120.AF) - REAR AXLE, FINAL DRIVE, PLANETARY GEAR (27) - REAR AXLE SYSTEM
27.100.ab
2
2
23
4
18
6
20
2
2
22
10
2
2
21
9
5
1
12
13
16
7
8
2
15
17
20
2
2
11
3
19
14
27.124.aa
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47566688

HUB

ASSY, Incl 2 - 22

2шт.

2

47579403

KIT

ASSY, Incl 6, 15 - 17, 20, 21

2шт.

3

87708445

FLANGE

Wheel

2шт.

4

D142986

STUD,88mm L

Bolt

20шт.

5

K395093

HEADED PIN,12mm OD x 15mm L

Headed Pin

2шт.

6

452140A1

SEALING RING,150mm ID x 180mm OD x 14.5mm W

1шт.

7

403955A1

BOLT

24шт.

8

87708466

GEAR SET

ASSY, Incl 9, 10, 26

2шт.

9

87708467

RING GEAR

2шт.

10

87711038

RING

2шт.

11

87708452

PLANET CARRIER

2шт.

12

87708444

ROLLER BEARING

Roller

6шт.

13

87708443

GEAR

Wheel Hub

6шт.

14

800-1150

SNAP RING,M50, Ext

6шт.

15

87708453

SNAP RING

1шт.

16

371144A1

O-RING

Piston External

1шт.

17

87708438

O-RING

1шт.

18

E135809

PLUG

2шт.

19

E135810

VENTING SCREW

2шт.

20

K395101

TAPERED BEARING,109.5mm ID x 126mm x 21.4mm L

2шт.

21

87708447

SPACER

2шт.

22

NSS

NOT SOLD SEPARAT

Ring Nut, Incl in 1

1шт.

23

NSS

NOT SOLD SEPARAT

Hub, Incl in 8

2шт.
