Запчасти Case 580SN (27.106.AN[02]) - VAR - 423060, 423061 - TRANSMISSION, SEMI-POWERSHIFT, DIFFERENTIAL LOCK, OIL, SUCTION PIPE (27) - REAR AXLE SYSTEM

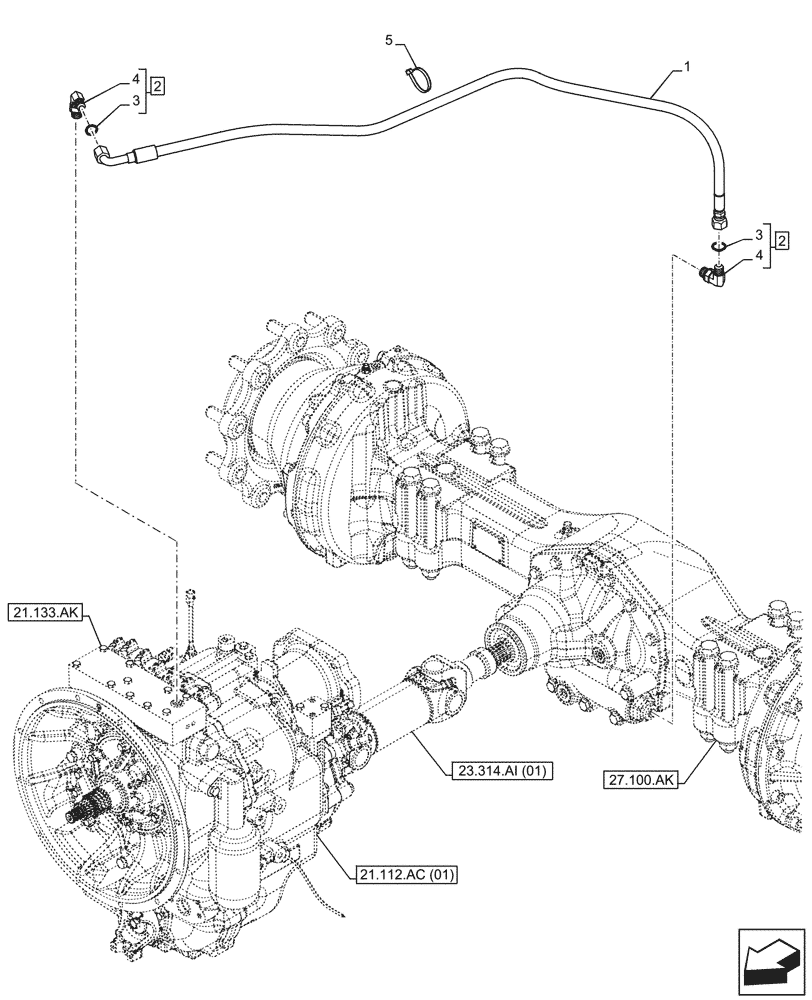

Схема запчастей Case 580SN - (27.106.AN[02]) - VAR - 423060, 423061 - TRANSMISSION, SEMI-POWERSHIFT, DIFFERENTIAL LOCK, OIL, SUCTION PIPE (27) - REAR AXLE SYSTEM
23.314.ai (01)
3
4
2
2
1
3
4
5
21.133.ak
21.112.ac (01)
27.100.ak

Артикул

Название

Примечание

Количество

1

87431701

HYDRAULIC HOSE,6.4mm ID x 1350mm L

Differential Lock, Semi-Powershift Transmission to Rear Axle

1шт.

2

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

ASSY, Incl 3, 4

2шт.

3

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

4

NSS

NOT SOLD SEPARAT

Elbow, Incl in 2

2шт.

5

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

Выбрано товаров: 5
