/ / / / / / / / (27.106.AK) - REAR AXLE, DIFFERENTIAL LOCK

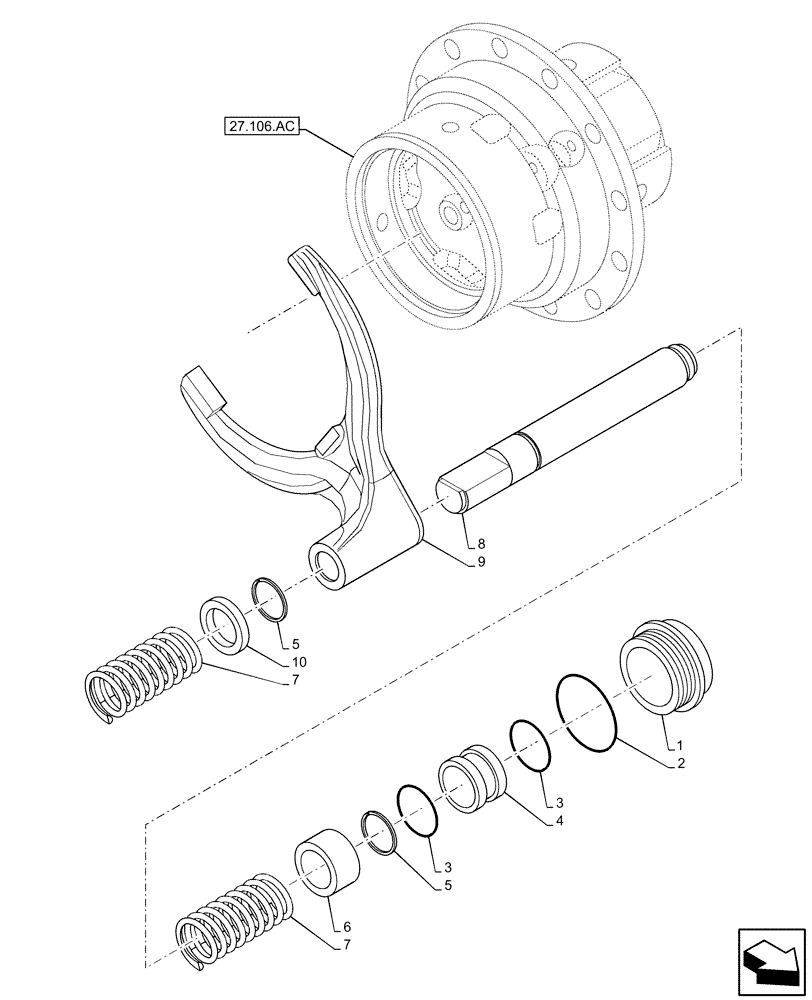

Запчасти Case 580SN (27.106.AK) - REAR AXLE, DIFFERENTIAL LOCK (27) - REAR AXLE SYSTEM
27.106.ac
7
5
7
3
9
5
10
3
4
8
2
6
1
1
87708413
CYLINDER
Differential Locking
1шт.
2
87708415
O-RING
1шт.
3
292210A1
SEAL
Piston
2шт.
4
292212A1
PISTON
Differential Lock
1шт.
5
87708417
CIRCLIP
Locking Ring
2шт.
6
87708420
BUSHING
1шт.
7
175966A1
SPRING
2шт.
8
87708422
PISTON
Rear Axle Control
1шт.
9
87708424
FORK
1шт.
10
87708427
SPACER
1шт.
